Product details
Approvals
| Approvals |
|
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (UR) | E60693 |
General ordering data

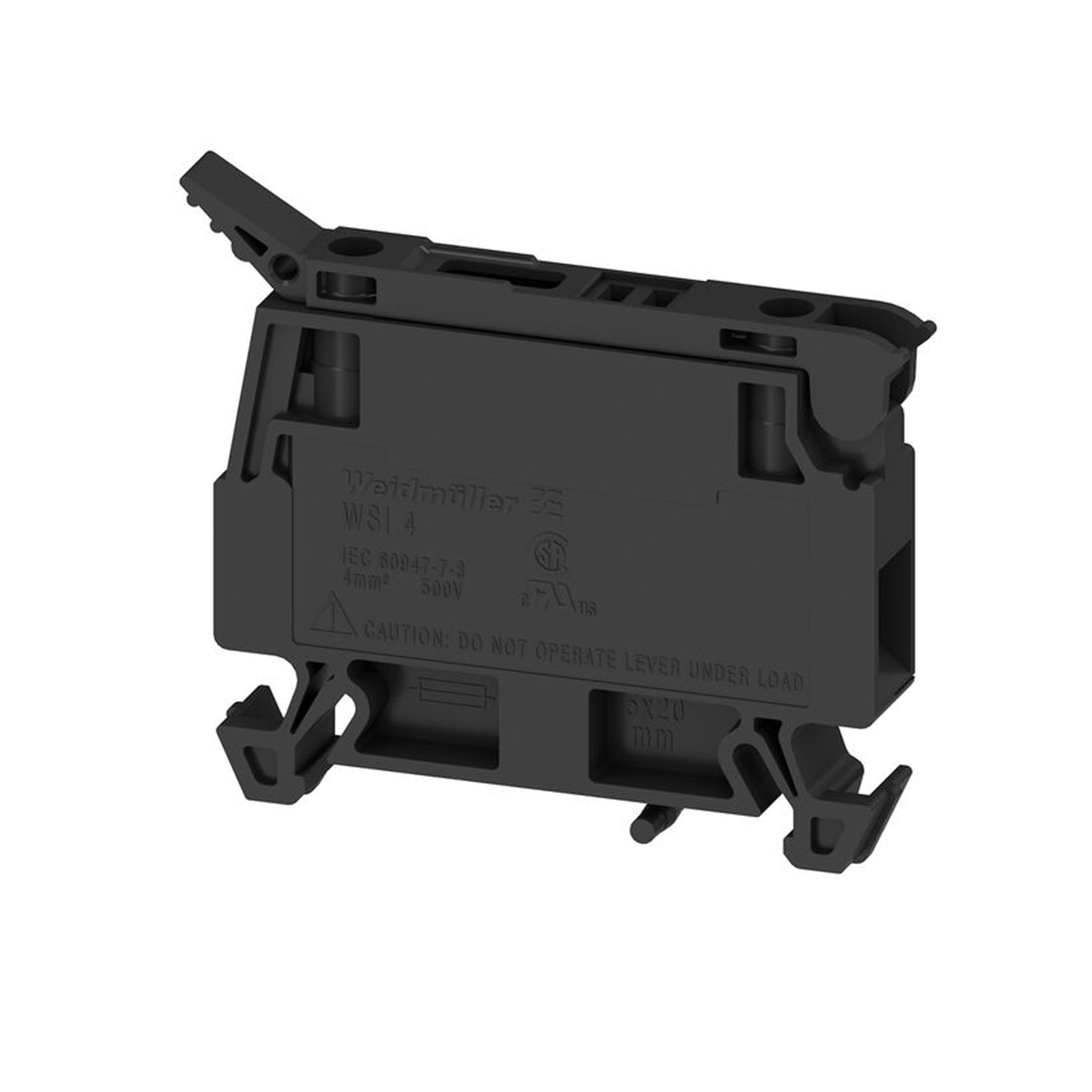

| Version | Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35 |
| Order No. | 1886580000 |
| Type | WSI 4 |
| GTIN (EAN) | 4032248492060 |
| Qty. |
|
Dimensions and weights
| Depth | 42.5 mm |
| Depth (inches) | 1.673 inch |
| Depth including DIN rail | 54 mm |
| Height |
|
| Height (inches) | 1.996 inch |
| Width | 8 mm |
| Width (inches) | 0.315 inch |
| Net weight | 9.75 g |
Temperatures
| Storage temperature | -25 °C…55 °C |
| Ambient temperature | -50 °C…75 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
