Product details
Approvals
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
General ordering data

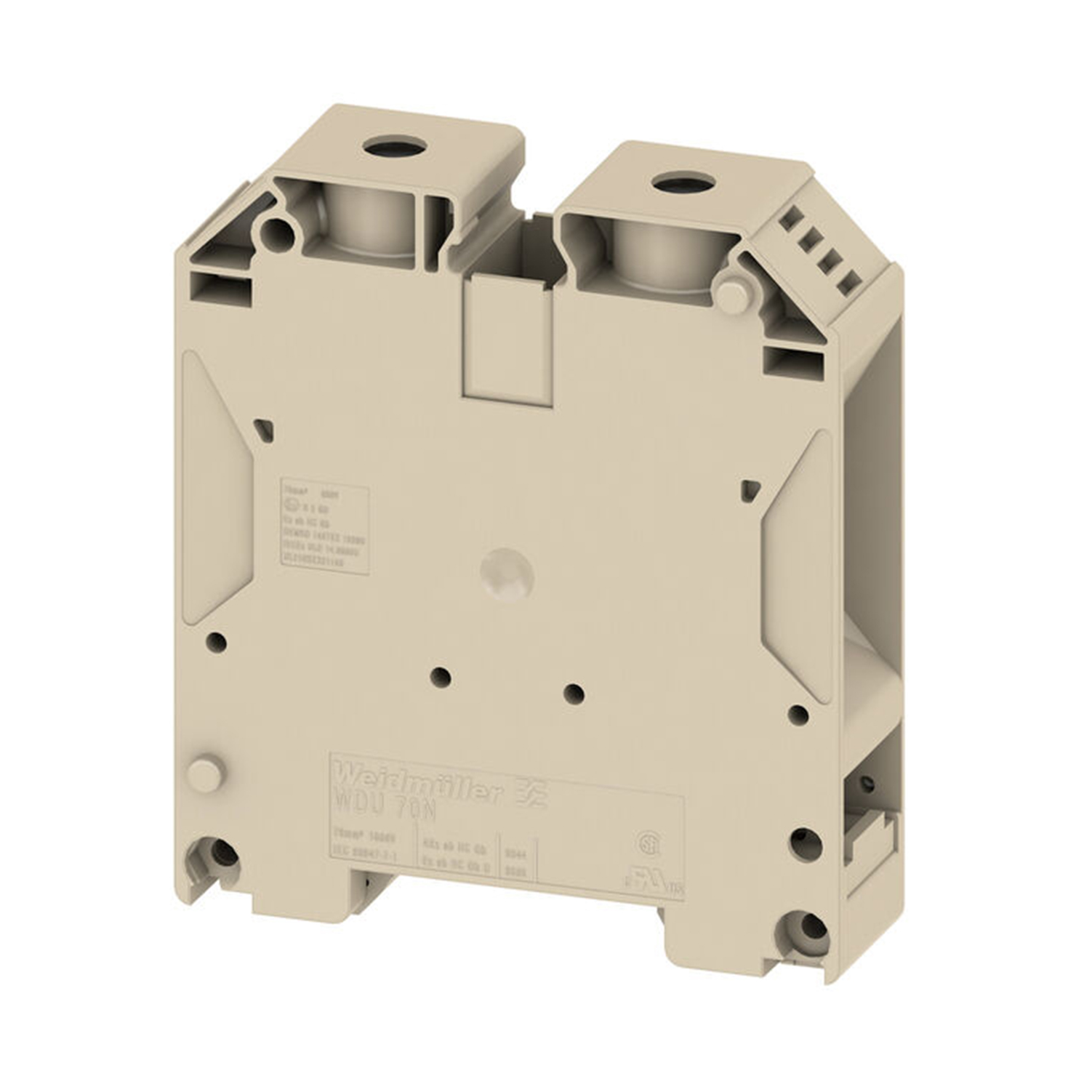

| Version | Feed-through terminal block, Screw connection, dark beige, 70 mm², 192 A, 1000 V, Number of connections: 2 |
| Order No. | 9512190000 |
| Type | WDU 70N/35 |
| GTIN (EAN) | 4008190403874 |
| Qty. |
|
Dimensions and weights
| Depth | 85 mm |
| Depth (inches) | 3.346 inch |
| Depth including DIN rail | 86 mm |
| Height |
|
| Height (inches) | 2.953 inch |
| Width | 20.5 mm |
| Width (inches) | 0.807 inch |
| Net weight | 118.93 g |
Temperatures
| Storage temperature | -25 °C…55 °C |
| Ambient temperature | -60 °C…85 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
