Product details
Approvals
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (UR) | E60693 |
General ordering data

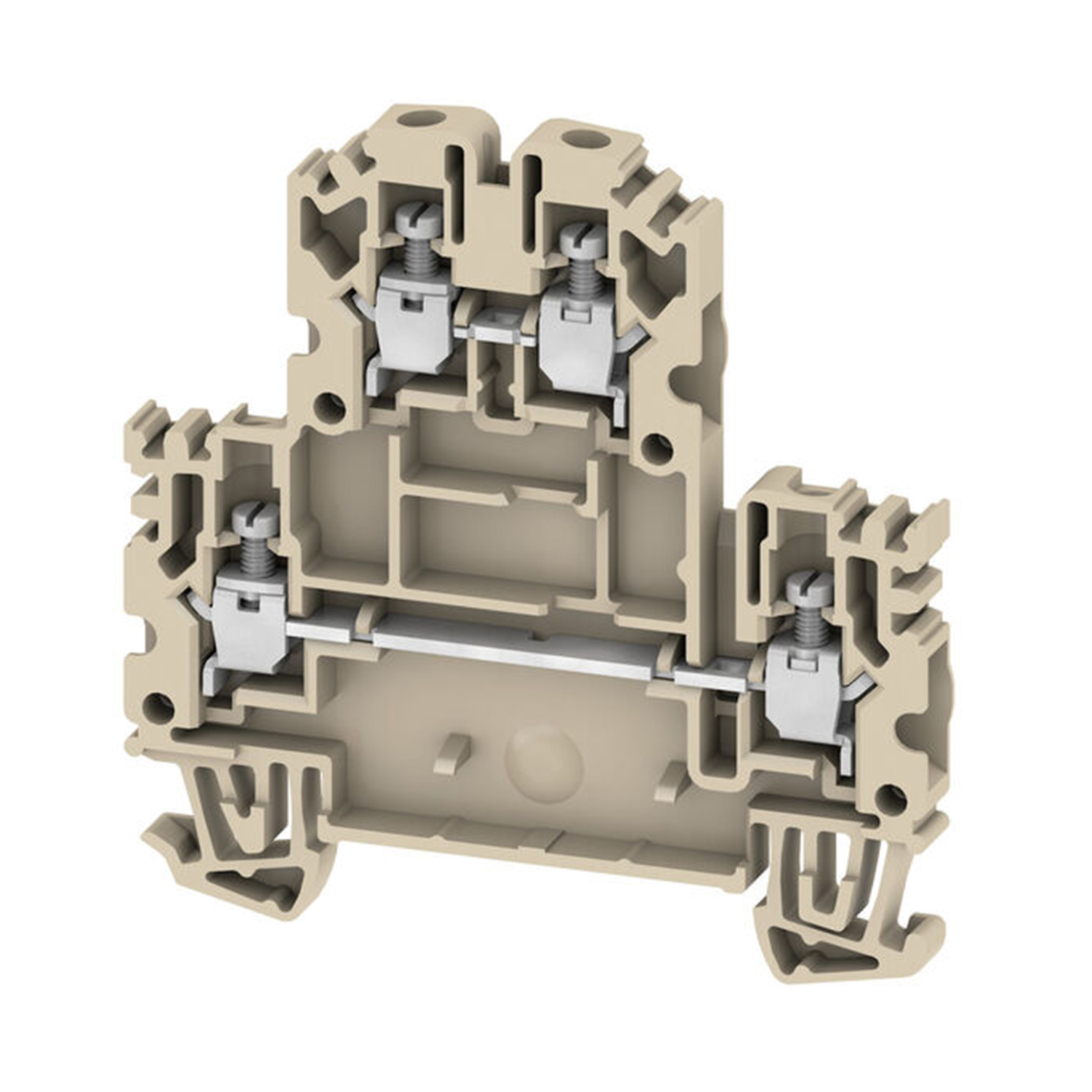

| Version | Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-0 |
| Order No. | 1041600000 |
| Type | WDK 2.5N |
| GTIN (EAN) | 4032248138807 |
| Qty. | 50 items |
Dimensions and weights
| Depth | 62 mm |
| Depth (inches) | 2.441 inch |
| Depth including DIN rail | 62.45 mm |
| Height |
|
| Height (inches) | 2.402 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 11.057 g |
Temperatures
| Storage temperature | -25 °C…55 °C |
| Ambient temperature | -60 °C…85 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
