Product details
Approvals
| Approvals |
|
| UL File Number Search | UL Website |
| Certificate No. (cURus) | E60693 |
General ordering data

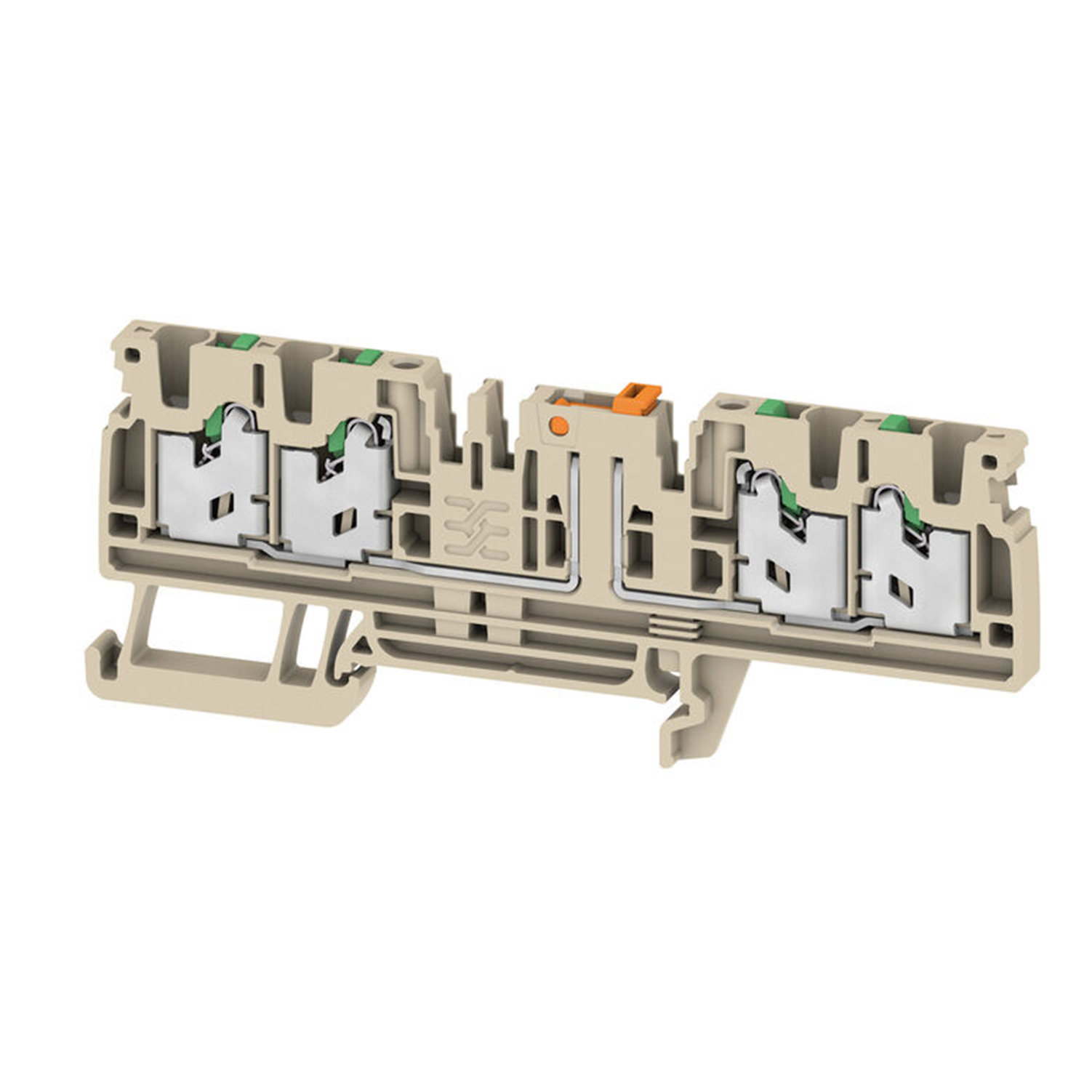

| Version | Test-disconnect terminal, SNAP IN, dark beige, 2.5 mm², 20 A, 500 V, Number of connections: 4, Number of levels: 1 |
| Order No. | 3016700000 |
| Type | SDT 2.5 4C |
| GTIN (EAN) | 4099986926547 |
| Qty. |
|
Dimensions and weights
| Depth | 37.65 mm |
| Depth (inches) | 1.482 inch |
| Height |
|
| Height (inches) | 3.78 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 16.057 g |
Temperatures
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
