Product details
Approvals
| Approvals |
|
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
General ordering data

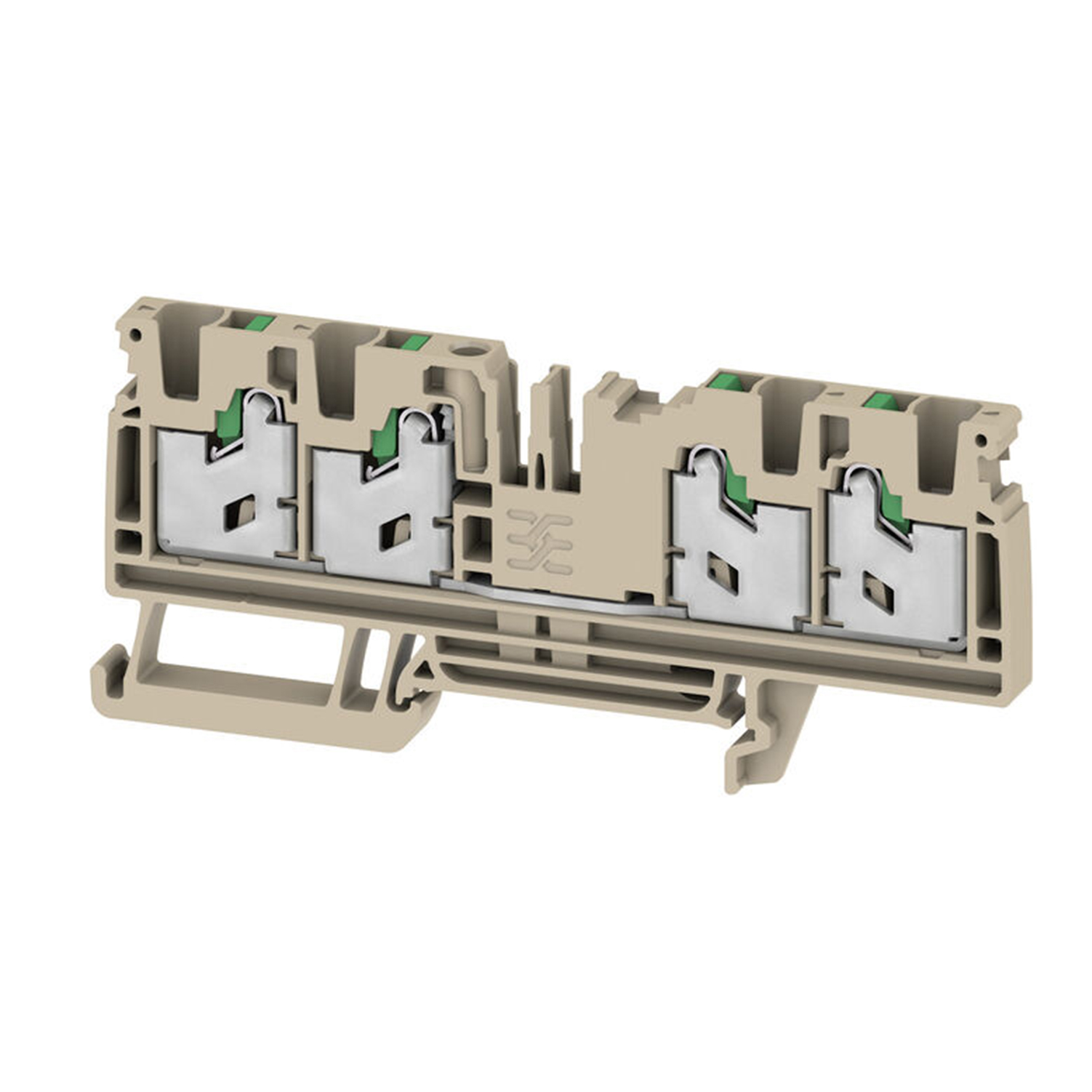

| Version | Feed-through terminal block, SNAP IN, dark beige, 4 mm², 32 A, 1000 V, Number of connections: 4 |
| Order No. | 2874860000 |
| Type | S4C 4 |
| GTIN (EAN) | 4064675649892 |
| Qty. |
|
Dimensions and weights
| Depth | 41.5 mm |
| Depth (inches) | 1.634 inch |
| Height |
|
| Height (inches) | 3.701 inch |
| Width | 6.1 mm |
| Width (inches) | 0.24 inch |
| Net weight | 22.461 g |
Temperatures
| Storage temperature | -25 °C…55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
