Product details
Approvals
| Approvals |
|
| UL File Number Search | UL Website |
| Certificate No. (cURus) | E60693 |
General ordering data

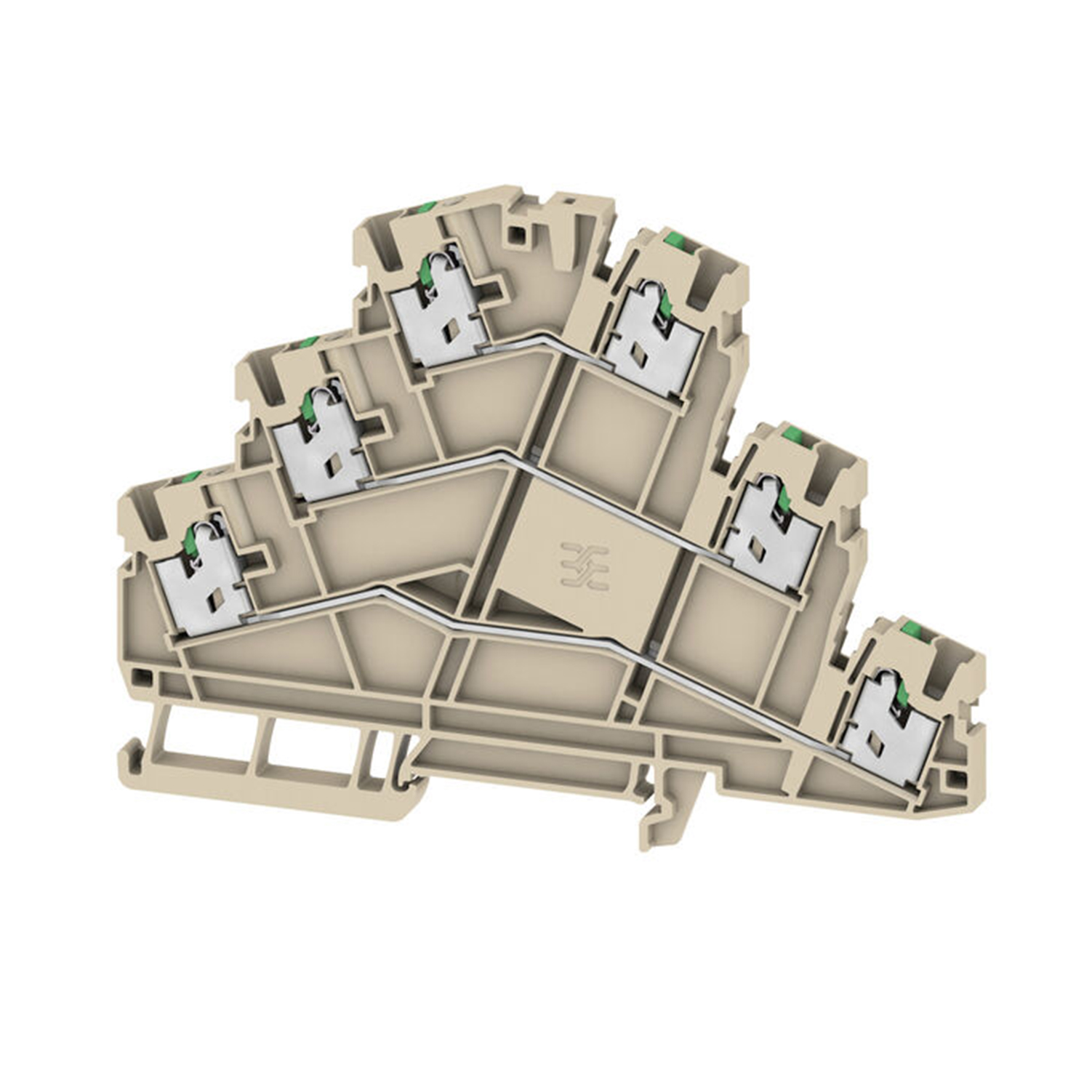

| Version | Multi-tier modular terminal, SNAP IN, dark beige, 2.5 mm², 800 V, Number of connections: 6, Number of levels: 3, TS 35, V-0 |
| Order No. | 2902530000 |
| Type | S3T 2.5 |
| GTIN (EAN) | 4099986004948 |
| Qty. |
|
Dimensions and weights
| Depth | 64.5 mm |
| Depth (inches) | 2.539 inch |
| Height |
|
| Height (inches) | 4.567 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 28.73 g |
Temperatures
| Storage temperature | 55 °C |
| Ambient temperature | -5 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
