Product details
Approvals
| Approvals |  |
| ROHS | Conform |
General ordering data
| Version | Temperature converter, Input : Temperature, PT100, Output : 0(4)-20 mA |
| Order No. | 7760054233 |
| Type | ACT20P-RTI-AO-S |
| GTIN (EAN) | 6944169696411 |
| Qty. | 1 items |

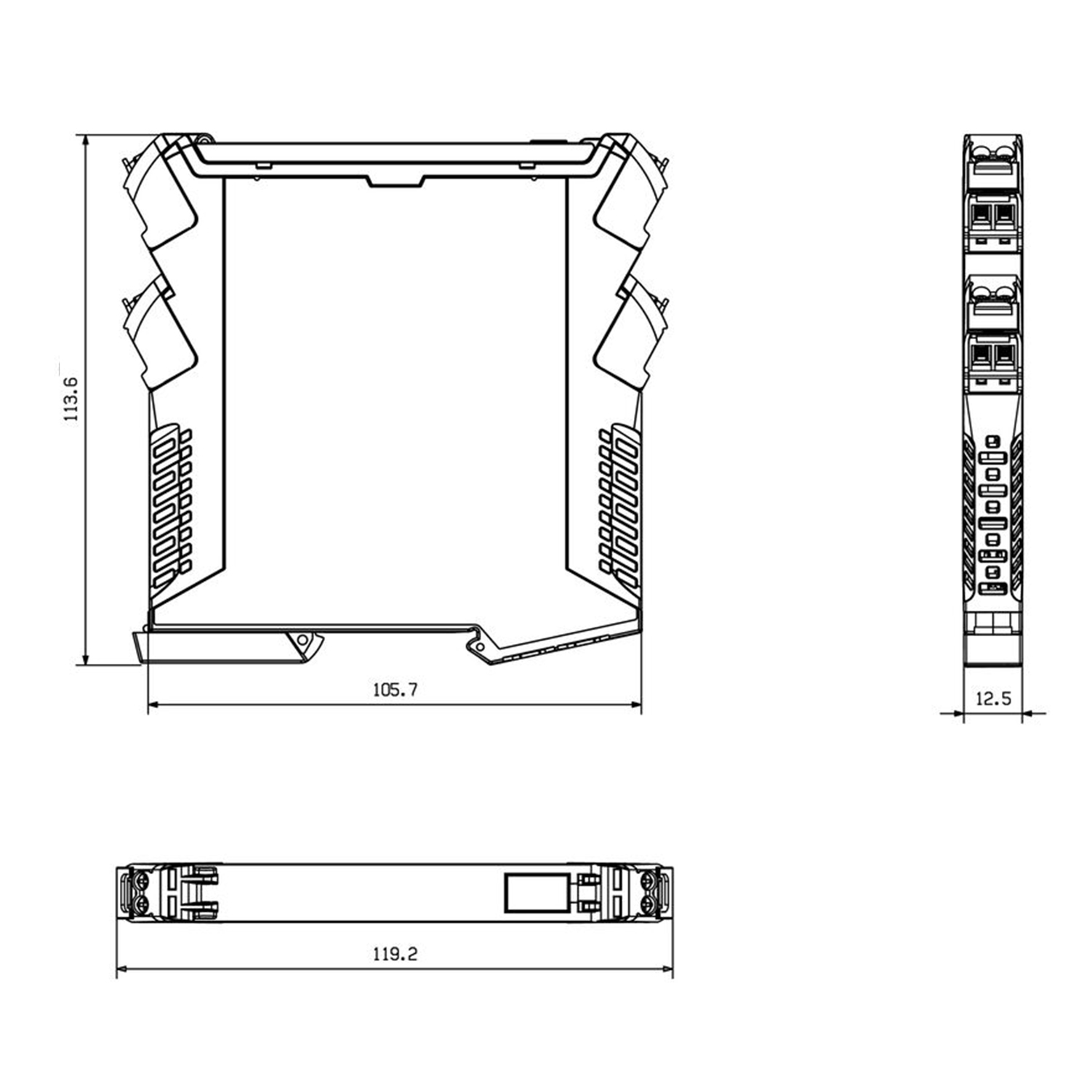

Dimensions and weights
| Depth | 114 mm |
| Depth (inches) | 4.488 inch |
| Height |
|
| Height (inches) | 4.614 inch |
| Width | 12.5 mm |
| Width (inches) | 0.492 inch |
| Net weight | 110 g |
Temperatures
| Storage temperature | -40 °C…85 °C |
| Operating temperature | -20 °C…60 °C |
| Humidity | 5…95 %, no condensation |
