Product details
Approvals
| Approvals |       |
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate no. (cULus) | E469563 |
| Certificate no. (cULusEX) | E338066 |
General ordering data

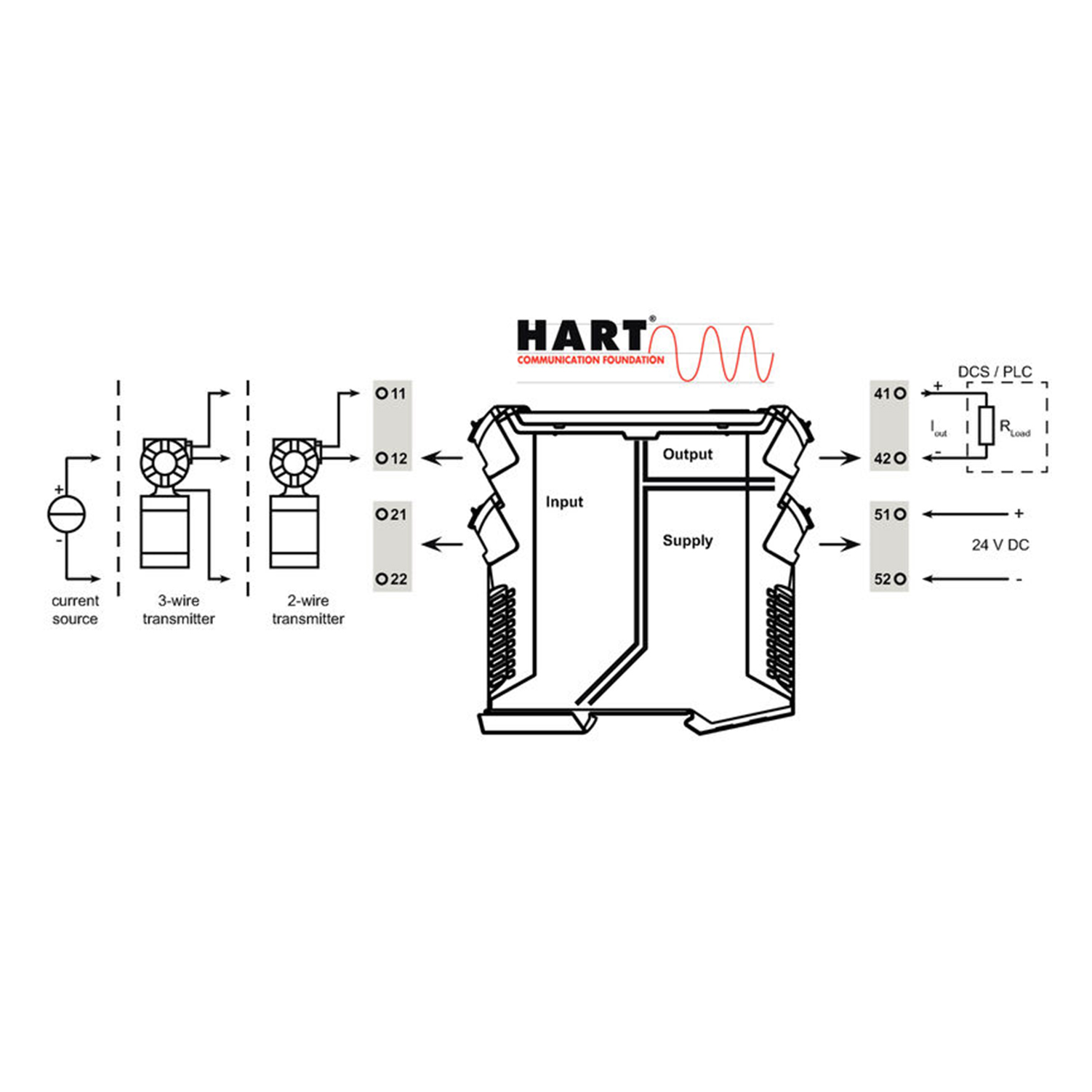

| Version | Analogue isolating amplifier, Input : 0(4)-20 mA, Output : 0(4)-20 mA, Signal converter/isolator, HART® |
| Order No. | 7760054114 |

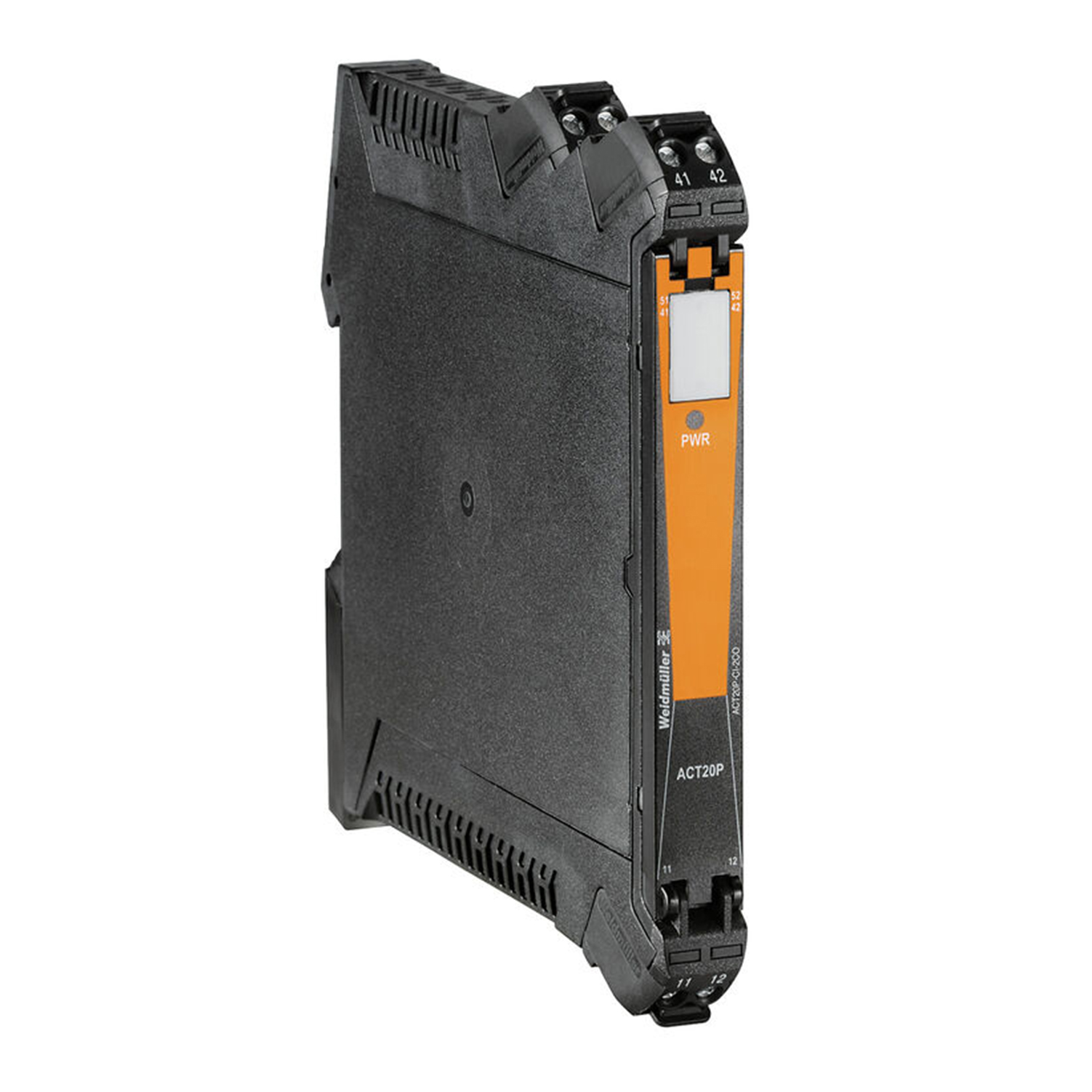

| Type | ACT20P-CI-CO-S |
| GTIN (EAN) | 6944169656552 |
| Qty. | 1 items |

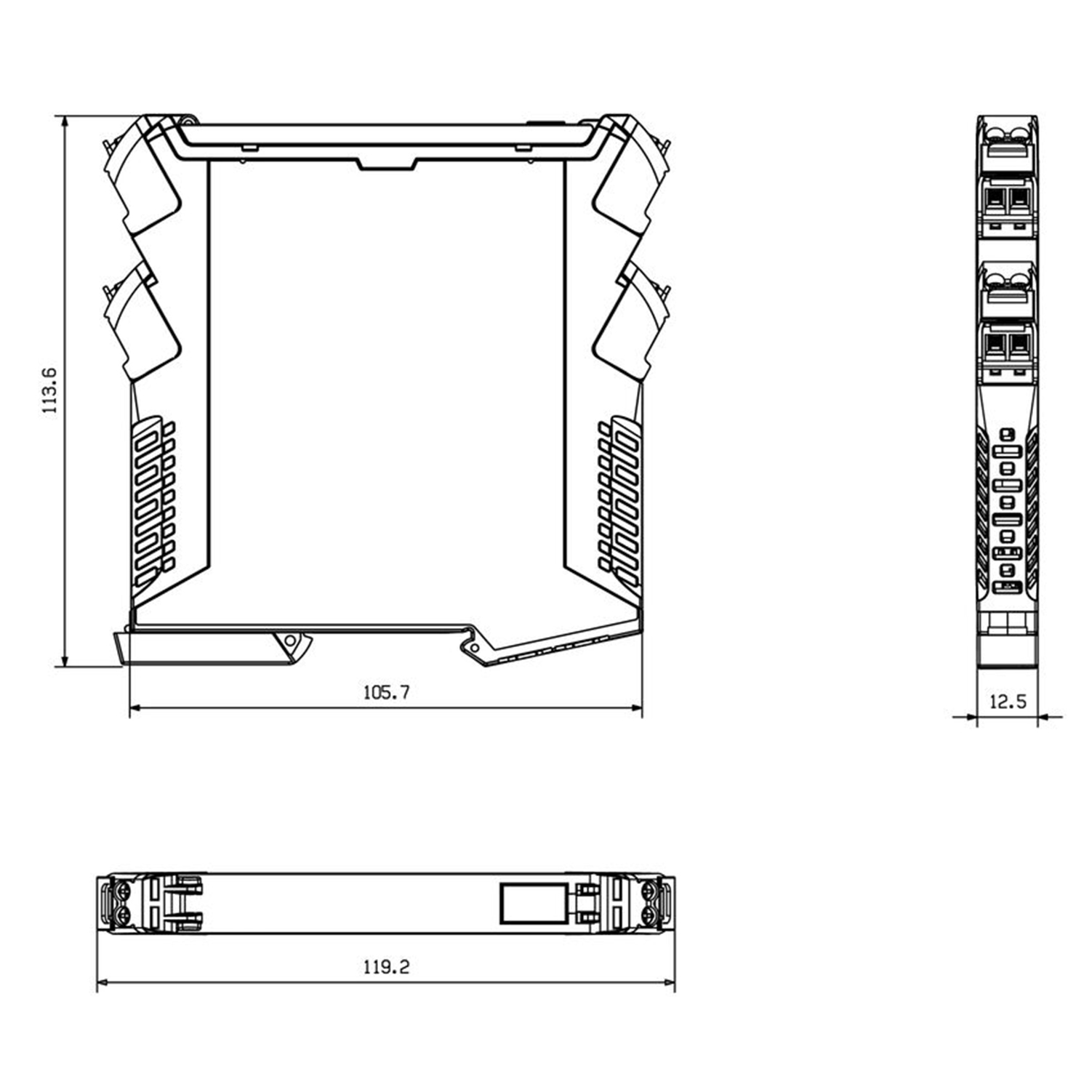

Dimensions and weights
| Depth | 113.7 mm |
| Depth (inches) | 4.476 inch |
| Height |
|
| Height (inches) | 4.614 inch |
| Width | 12.5 mm |
| Width (inches) | 0.492 inch |
| Net weight | 142 g |
Temperatures
| Storage temperature | -40 °C…85 °C |
| Operating temperature | -20 °C…60 °C |
| Humidity at operating temperature | 0…95 % (no condensation) |
| Humidity | 5…95 %, no condensation |
