Product details
Approvals
| Approvals |
|
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (cURus) | E60693 |
General ordering data

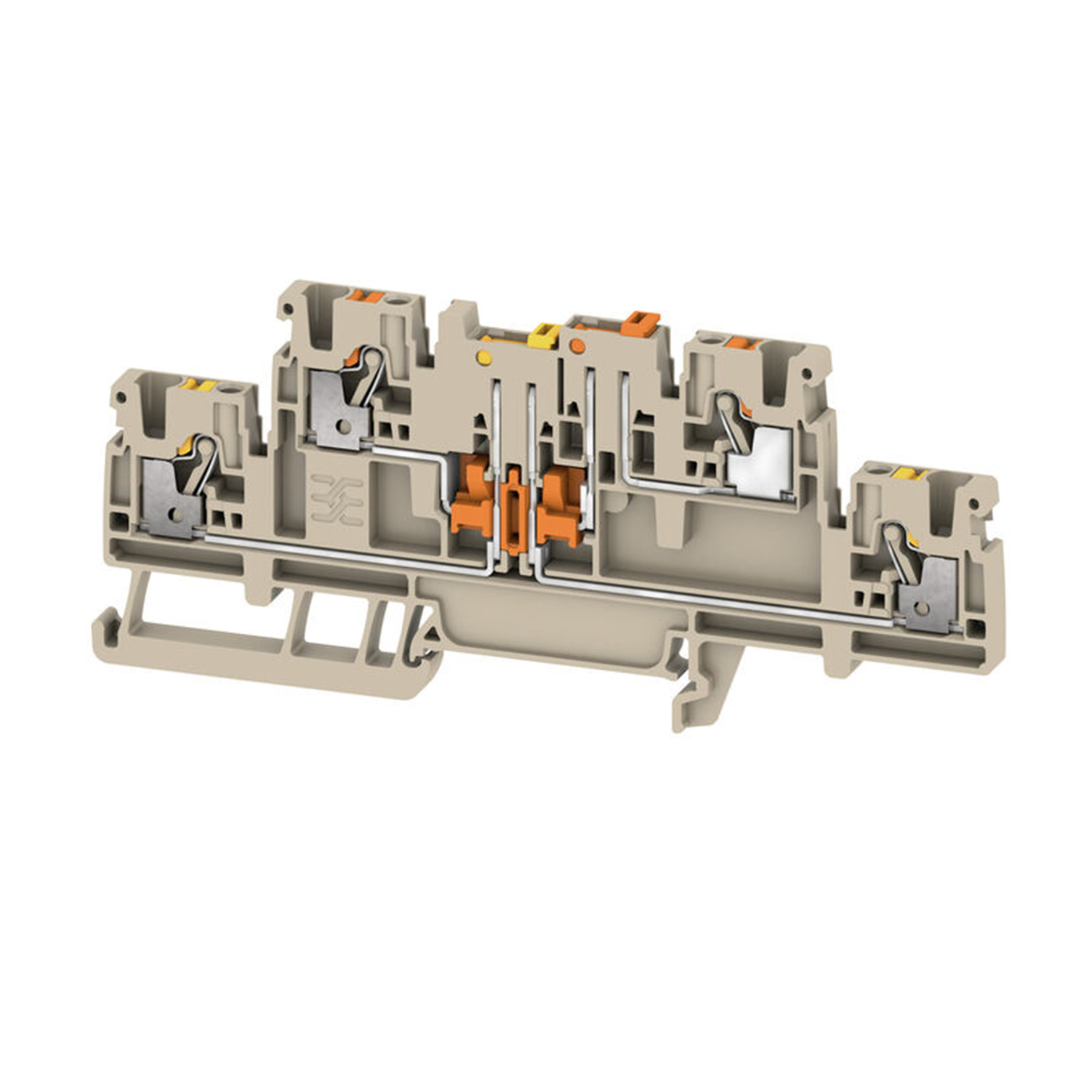

| Version | Test-disconnect terminal, PUSH IN, 2.5 mm², 400 V, 16 A, dark beige |
| Order No. | 2744110000 |
| Type | A2T 2.5 DT/DT |
| GTIN (EAN) | 4050118888409 |
| Qty. |
|
Dimensions and weights
| Depth | 50.5 mm |
| Depth (inches) | 1.988 inch |
| Height |
|
| Height (inches) | 4.528 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 20.038 g |
Temperatures
| Storage temperature | -25 °C…55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
