Product details
Approvals
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
General ordering data

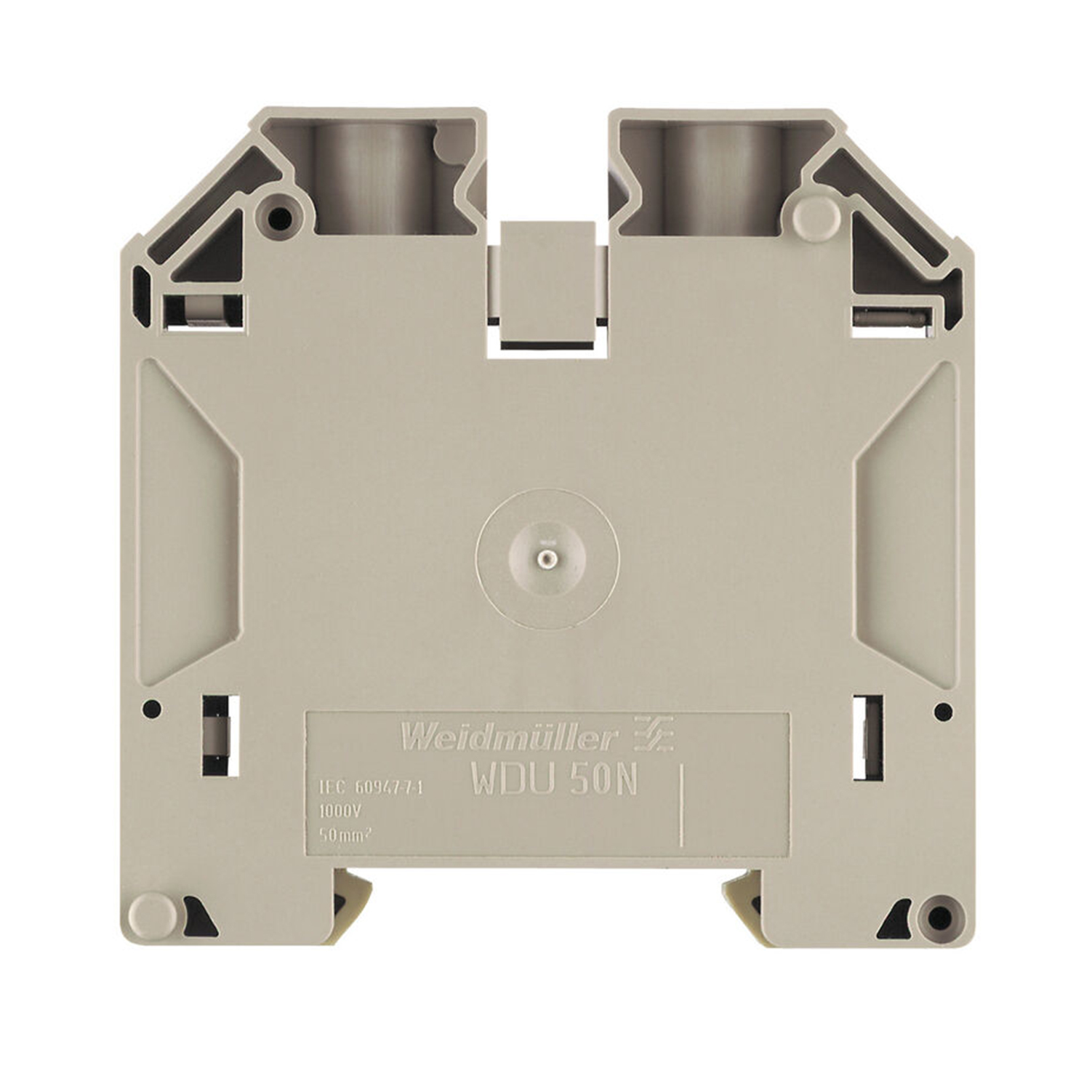

| Version | Feed-through terminal block, Screw connection, dark beige, 50 mm², 150 A, 1000 V, Number of connections: 2 |
| Order No. | 1820840000 |
| Type | WDU 50N |
| GTIN (EAN) | 4032248318117 |
| Qty. |
|
Dimensions and weights
| Depth | 69.6 mm |
| Depth (inches) | 2.74 inch |
| Depth including DIN rail | 70.6 mm |
| Height |
|
| Height (inches) | 2.756 inch |
| Width | 18.5 mm |
| Width (inches) | 0.728 inch |
| Net weight | 84.38 g |
Temperatures
| Storage temperature | -25 °C…55 °C |
| Ambient temperature | -60 °C…85 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
