Product details
Approvals
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
General ordering data

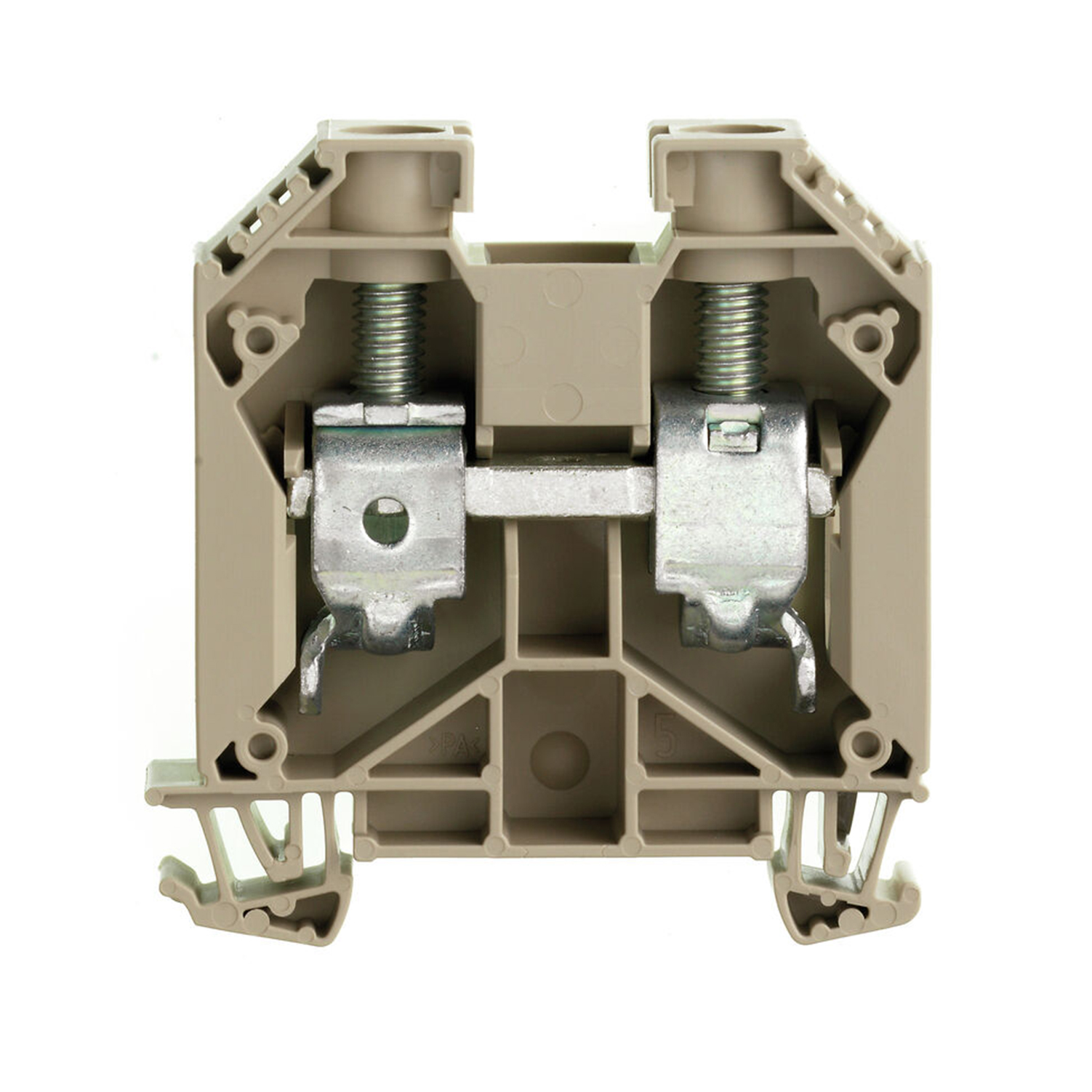

| Version | Feed-through terminal block, Screw connection, dark beige, 35 mm², 125 A, 1000 V, Number of connections: 2 |
| Order No. | 1020500000 |
| Type | WDU 35 |
| GTIN (EAN) | 4008190077013 |
| Qty. |
|
Dimensions and weights
| Depth | 62.5 mm |
| Depth (inches) | 2.461 inch |
| Depth including DIN rail | 63 mm |
| Height |
|
| Height (inches) | 2.362 inch |
| Width | 16 mm |
| Width (inches) | 0.63 inch |
| Net weight | 51.38 g |
Temperatures
| Storage temperature | -25 °C…55 °C |
| Ambient temperature | -60 °C…85 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
