Product details
Approvals
| Approvals |
|
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
General ordering data

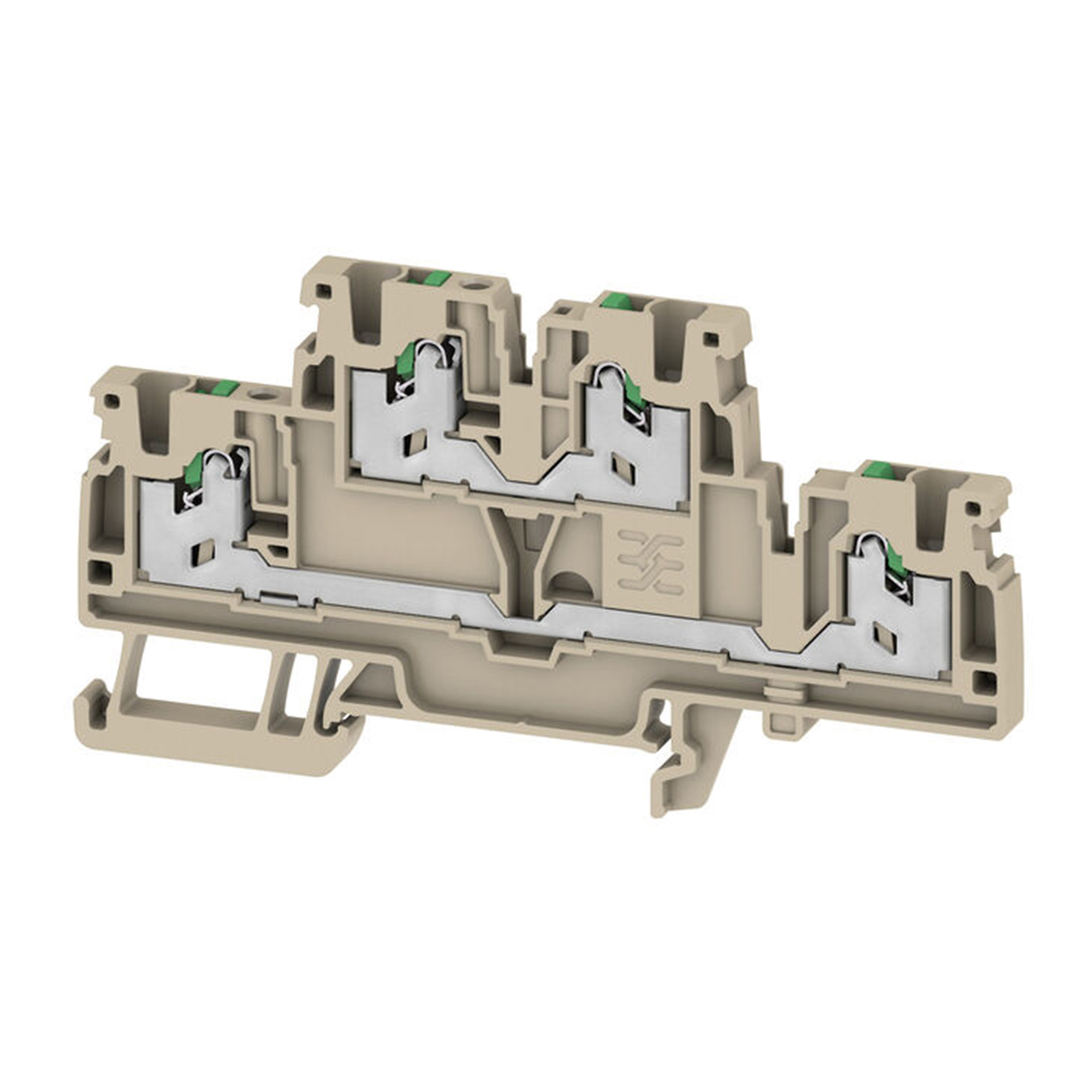

| Version | Multi-tier modular terminal, SNAP IN, dark beige, 2.5 mm², 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-0 |
| Order No. | 2902380000 |
| Type | S2T 2.5 |
| GTIN (EAN) | 4099986004795 |
| Qty. |
|
Dimensions and weights
| Depth | 52 mm |
| Depth (inches) | 2.047 inch |
| Height |
|
| Height (inches) | 3.74 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 15.177 g |
Temperatures
| Storage temperature | -25 °C…55 °C |
| Ambient temperature | -5 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
