Product details
Approvals
| Approvals |
|
| ROHS | Conform |
General ordering data
| Version | D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection |
| Order No. | 7760056347 |
| Type | SDI 2CO ECO |
| GTIN (EAN) | 6944169739941 |
| Qty. |
|

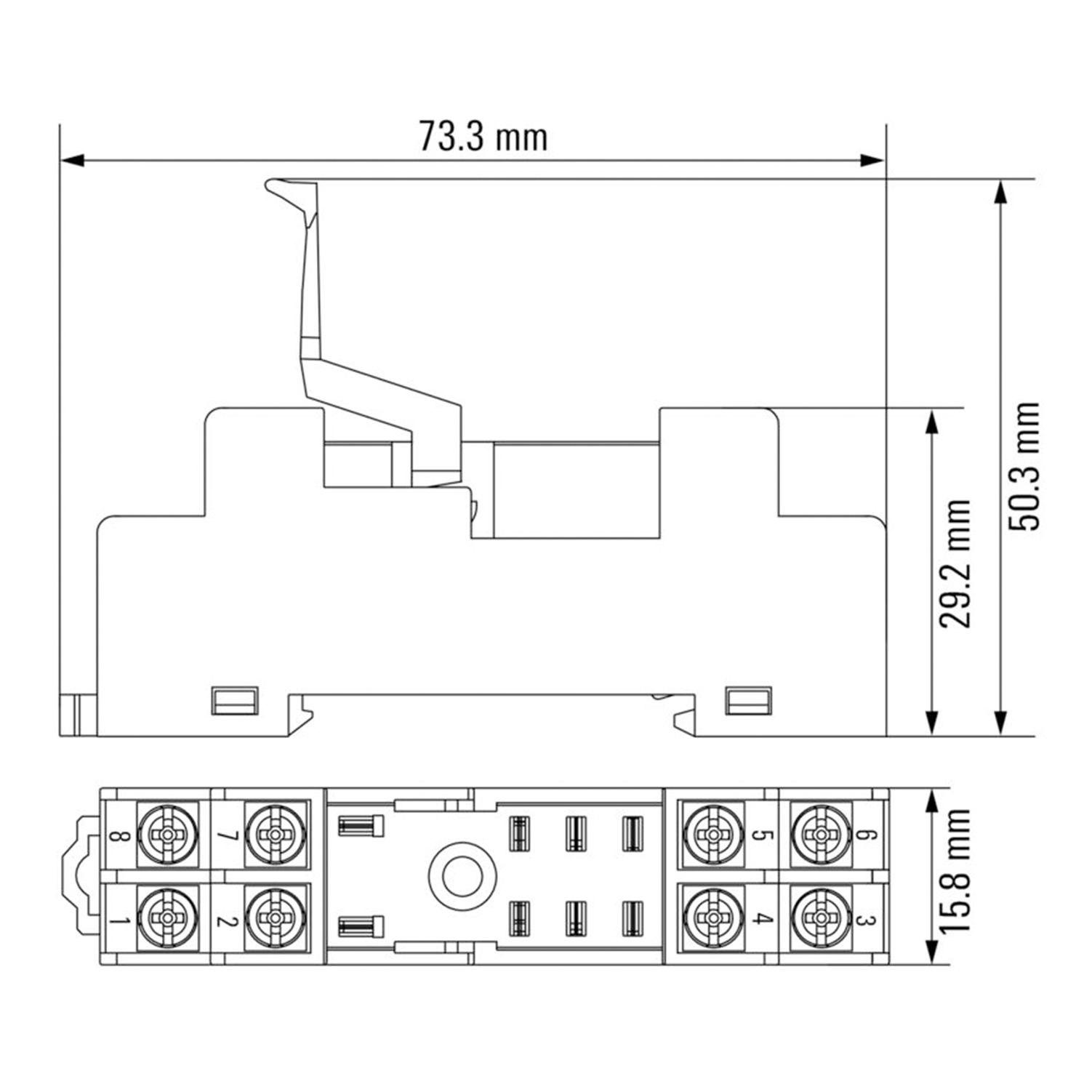

Dimensions and weights
| Depth | 29.2 mm |
| Depth (inches) | 1.15 inch |
| Height |
|
| Height (inches) | 2.886 inch |
| Width | 15.8 mm |
| Width (inches) | 0.622 inch |
| Net weight | 23 g |
Temperatures
| Storage temperature | -40 °C…85 °C |
| Ambient temperature | -40 °C…70 °C |
| Humidity | 35…85 % rel. humidity, no condensation |
