Product details
Approvals
| Approvals |
|
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (cURus) | E60693 |
| Certificate No. (cURusEX) | E184763 |
General ordering data

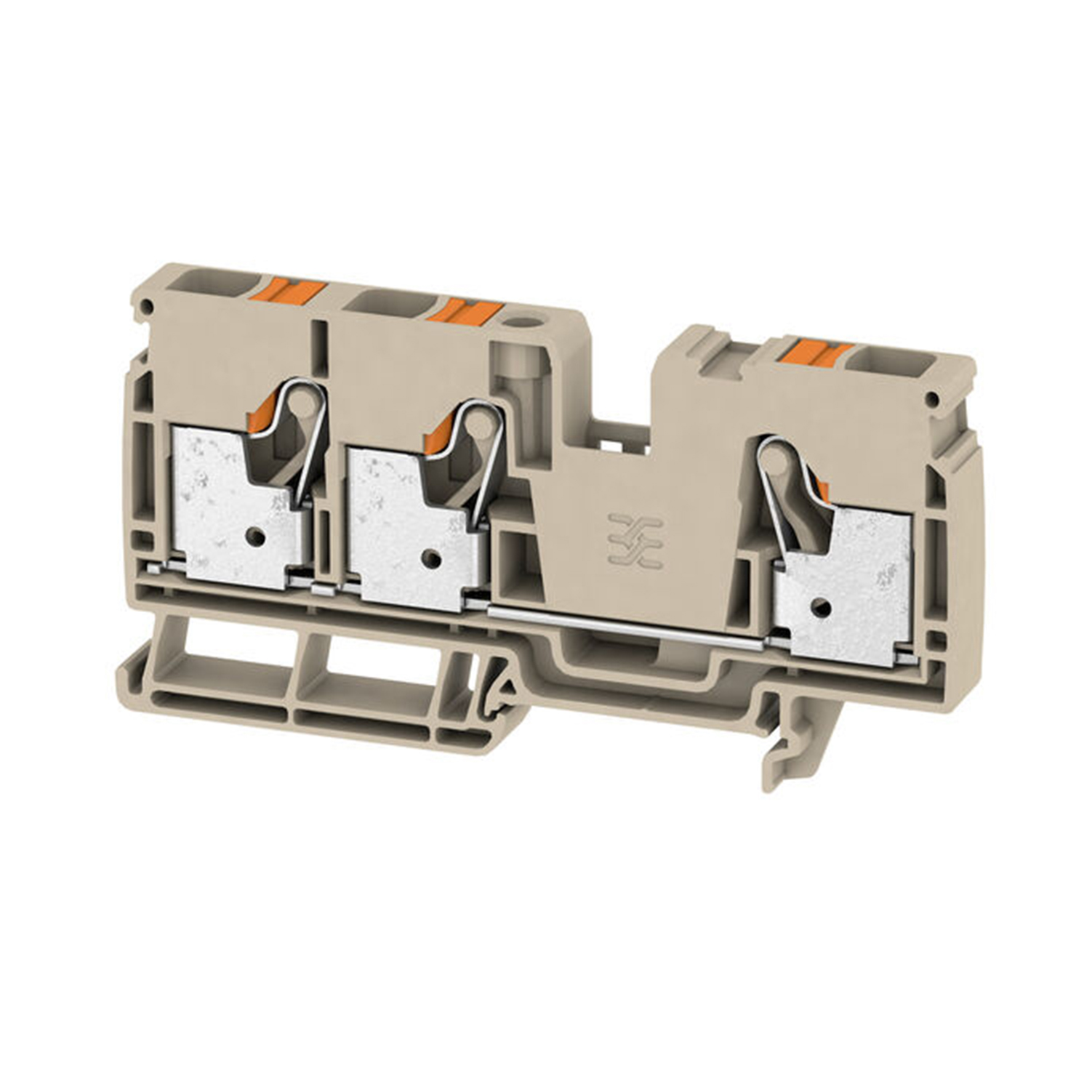

| Version | Feed-through terminal, PUSH IN, 10 mm², 1000 V, 57 A, dark beige |
| Order No. | 2490520000 |
| Type | A3C 10 |
| GTIN (EAN) | 4050118500394 |
| Qty. |
|
Dimensions and weights
| Depth | 51.5 mm |
| Depth (inches) | 2.028 inch |
| Depth including DIN rail | 52.5 mm |
| Height |
|
| Height (inches) | 4.016 inch |
| Width | 10 mm |
| Width (inches) | 0.394 inch |
| Net weight | 43.691 g |
Temperatures
| Storage temperature | -25 °C…55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
