Product details
Approvals
| Approvals |                 |
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate no. (cULus) | E141197 |
| Certificate no. (cULusEX) | E223527 |
General ordering data

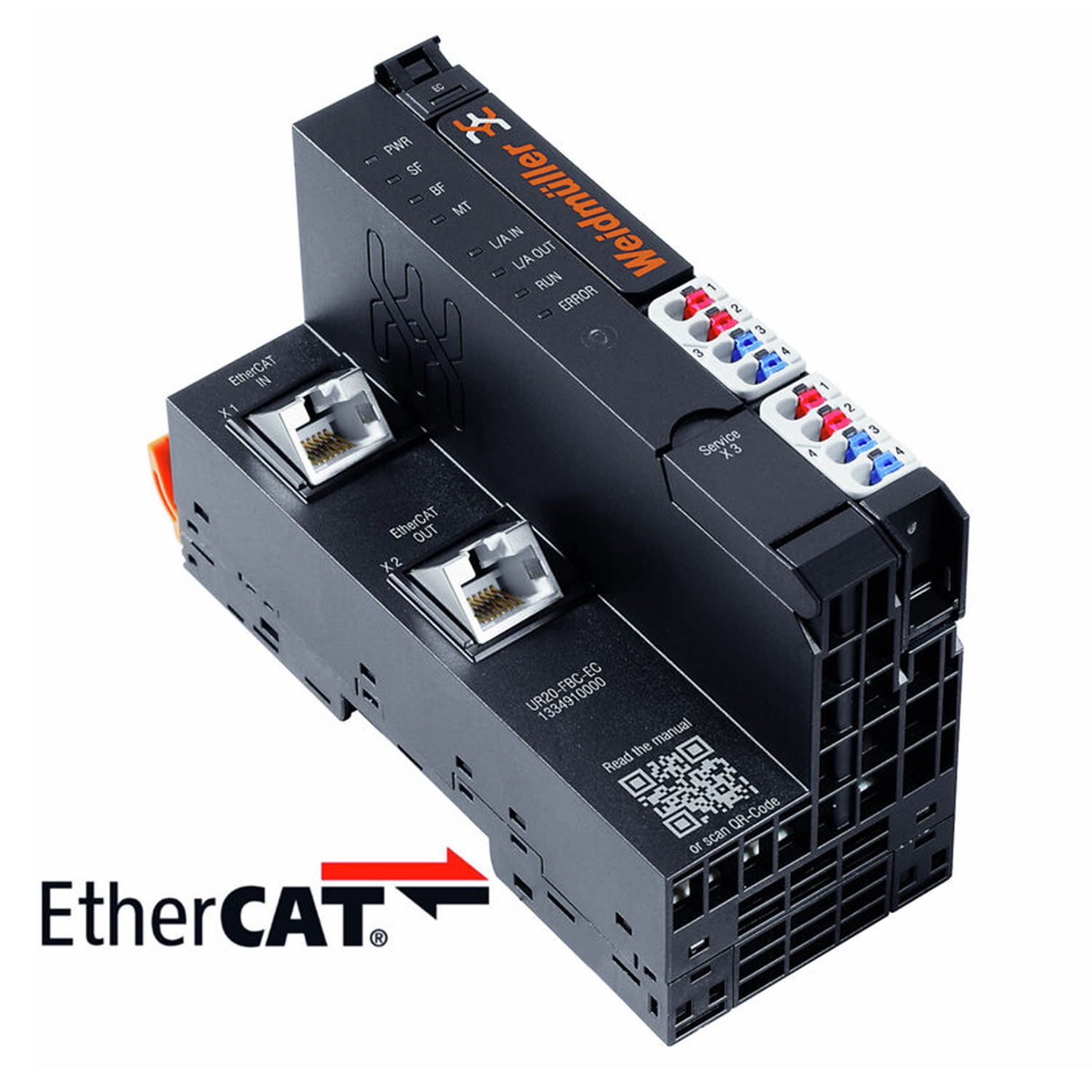

| Version | Remote I/O fieldbus coupler, IP20, Ethernet, EtherCAT |
| Order No. | 1334910000 |
| Type | UR20-FBC-EC |
| GTIN (EAN) | 4050118138283 |
| Qty. | 1 items |
Dimensions and weights
| Depth | 76 mm |
| Depth (inches) | 2.992 inch |
| Height |
|
| Height (inches) | 4.724 inch |
| Width | 52 mm |
| Width (inches) | 2.047 inch |
| Mounting dimension – height | 128 mm |
| Net weight | 227 g |
Temperatures
| Storage temperature | -40 °C … +85 °C |
| Operating temperature | -20 °C…60 °C |
