Product details
Approvals
| Approvals |                 |
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate no. (cULus) | E141197 |
| Certificate no. (cULusEX) | E223527 |
General ordering data

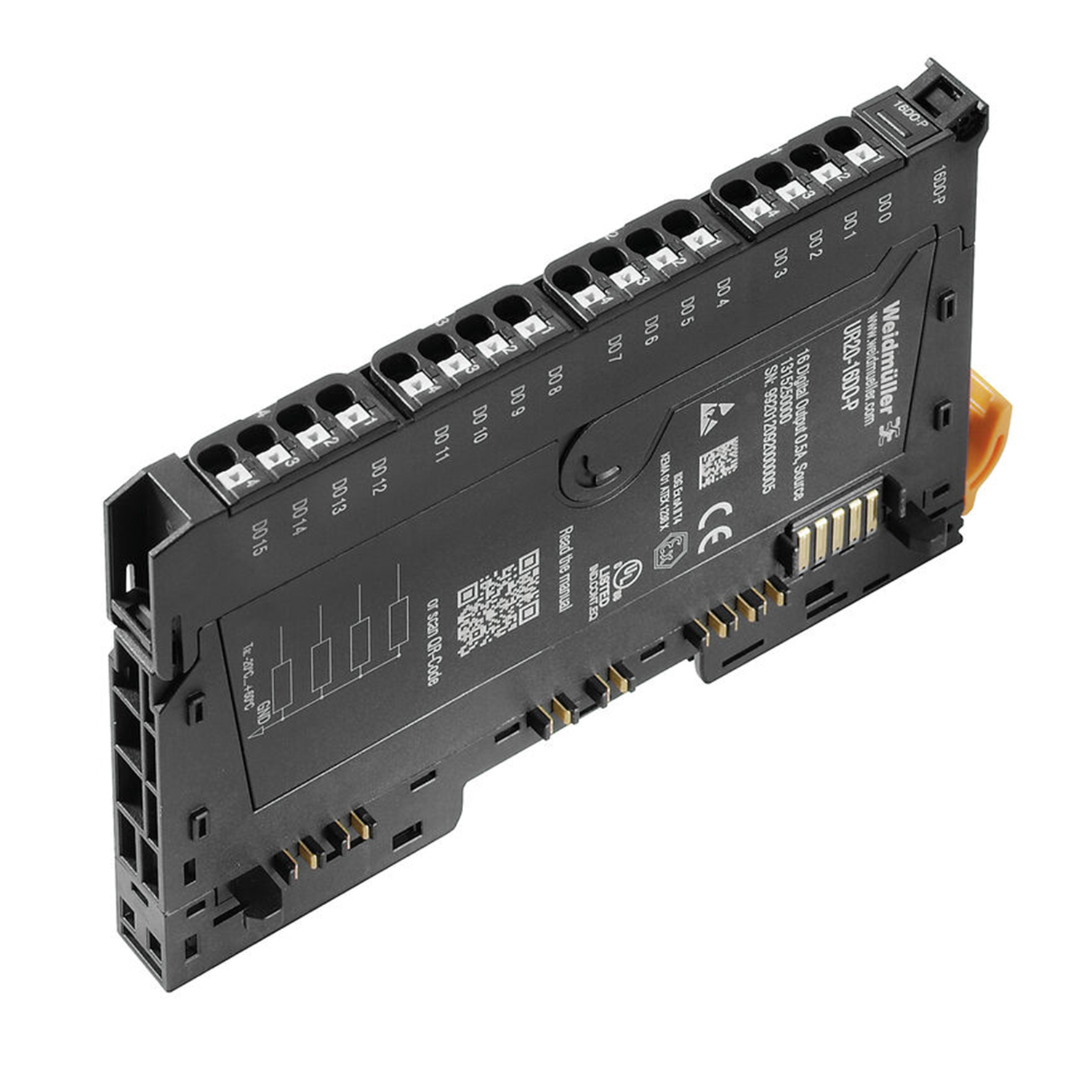

| Version | Remote I/O module, IP20, Digital signals, Output, 16-channel |
| Order No. | 1315250000 |
| Type | UR20-16DO-P |
| GTIN (EAN) | 4050118118537 |
| Qty. | 1 items |
Dimensions and weights
| Depth | 76 mm |
| Depth (inches) | 2.992 inch |
| Height |
|
| Height (inches) | 4.724 inch |
| Width | 11.5 mm |
| Width (inches) | 0.453 inch |
| Mounting dimension – height | 128 mm |
| Net weight | 83 g |
Temperatures
| Storage temperature | -40 °C … +85 °C |
| Operating temperature | -20 °C…60 °C |
