Product details
Approvals
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate no. (cULus) | E141197 |
General ordering data

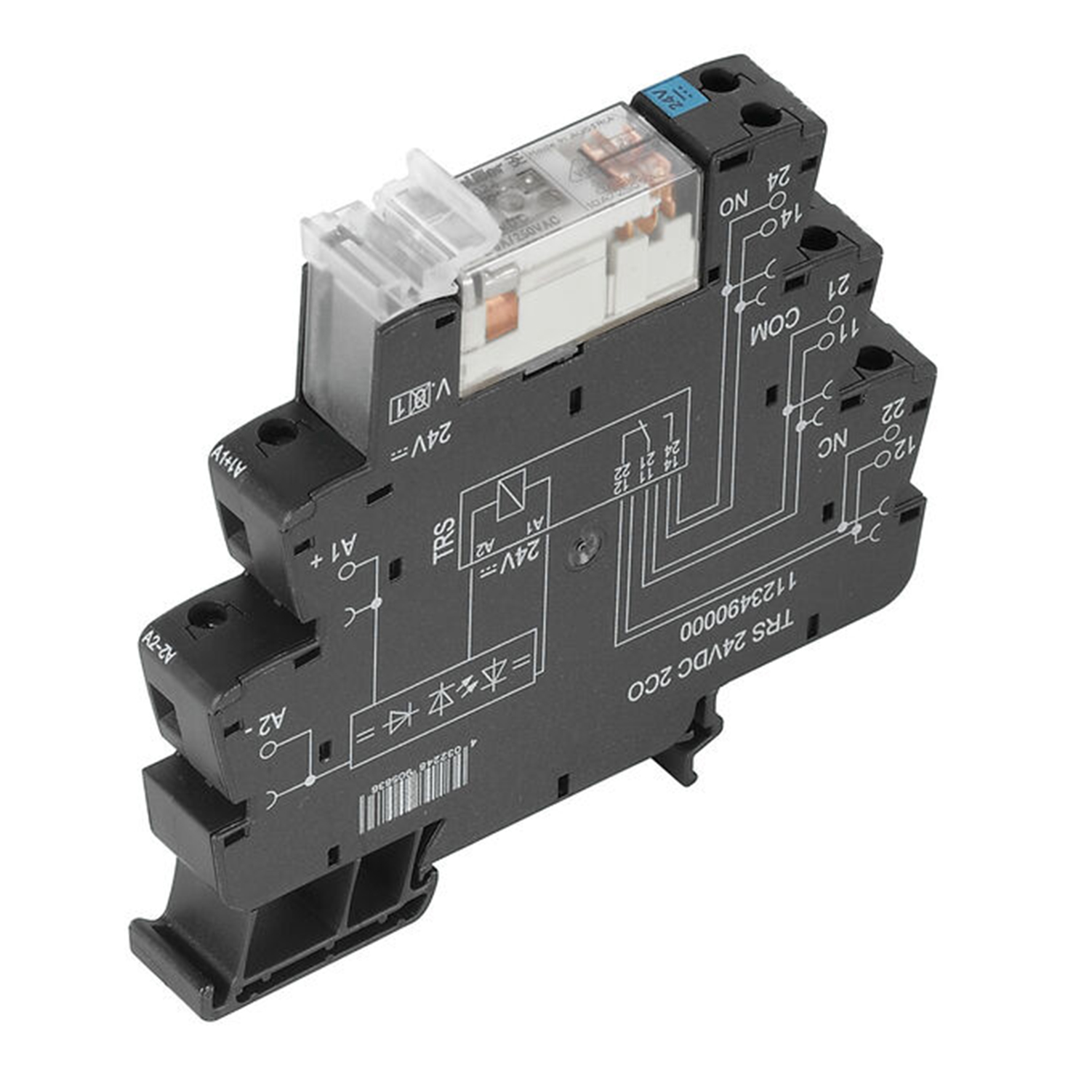

| Version | TERMSERIES, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 8 A, Screw connection, Test button available: No |
| Order No. | 1123490000 |
| Type | TRS 24VDC 2CO |
| GTIN (EAN) | 4032248905836 |
| Qty. | 10 items |
Dimensions and weights
| Depth | 87.8 mm |
| Depth (inches) | 3.457 inch |
| Height | 89.6 mm |
| Height (inches) | 3.528 inch |
| Width | 12.8 mm |
| Width (inches) | 0.504 inch |
| Net weight | 56 g |
Temperatures
| Storage temperature | -40 °C…85 °C |
| Operating temperature | -40 °C…60 °C |
| Humidity | 5-95% relative humidity, Tu = 40°C, without condensation |
