SDI 2CO
SDI 2CO - Image 2
SDI 2CO - Image 3
SDI 2CO - Image 4
SDI 2CO - Image 5

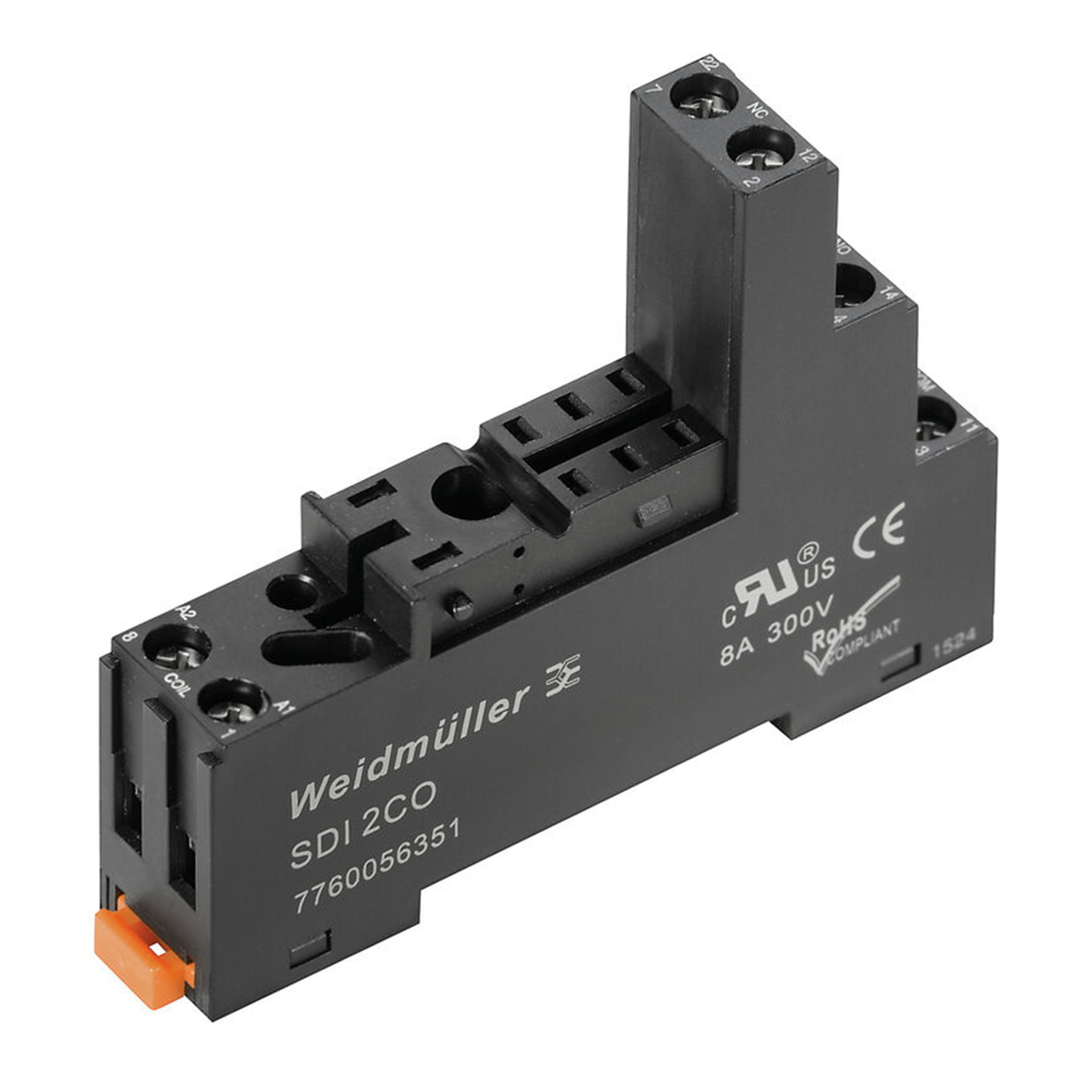

SDI 2CO

In stock

D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection

Item No.7760056351



Wishlist
Compare

Product details

Approvals

10 items
Approvals
ROHS Conform
UL File Number Search UL Website
Certificate No. (cURus) E355547

General ordering data

Version D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection
Order No. 7760056351
Type SDI 2CO
GTIN (EAN) 6944169739989
Qty.
10 items

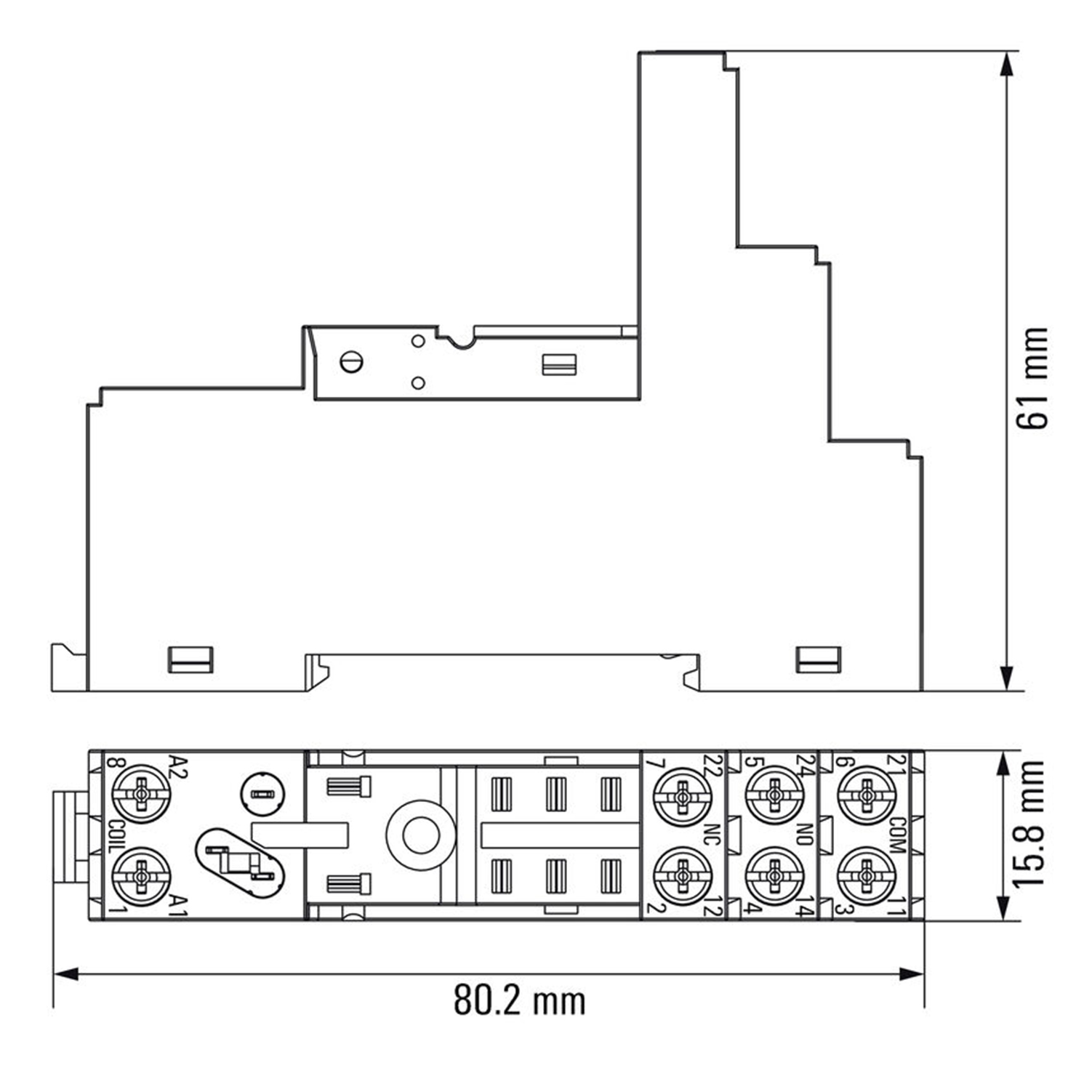

Dimensions and weights

Depth 61 mm
Depth (inches) 2.402 inch
Height
80.2 mm
Height (inches) 3.157 inch
Width 15.8 mm
Width (inches) 0.622 inch
Net weight 42.4 g

Temperatures

Storage temperature -40 °C…85 °C
Ambient temperature -40 °C…70 °C
Humidity 35…85 % rel. humidity, no condensation
