Product details
Approvals
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (cURus) | E312083 |
General ordering data

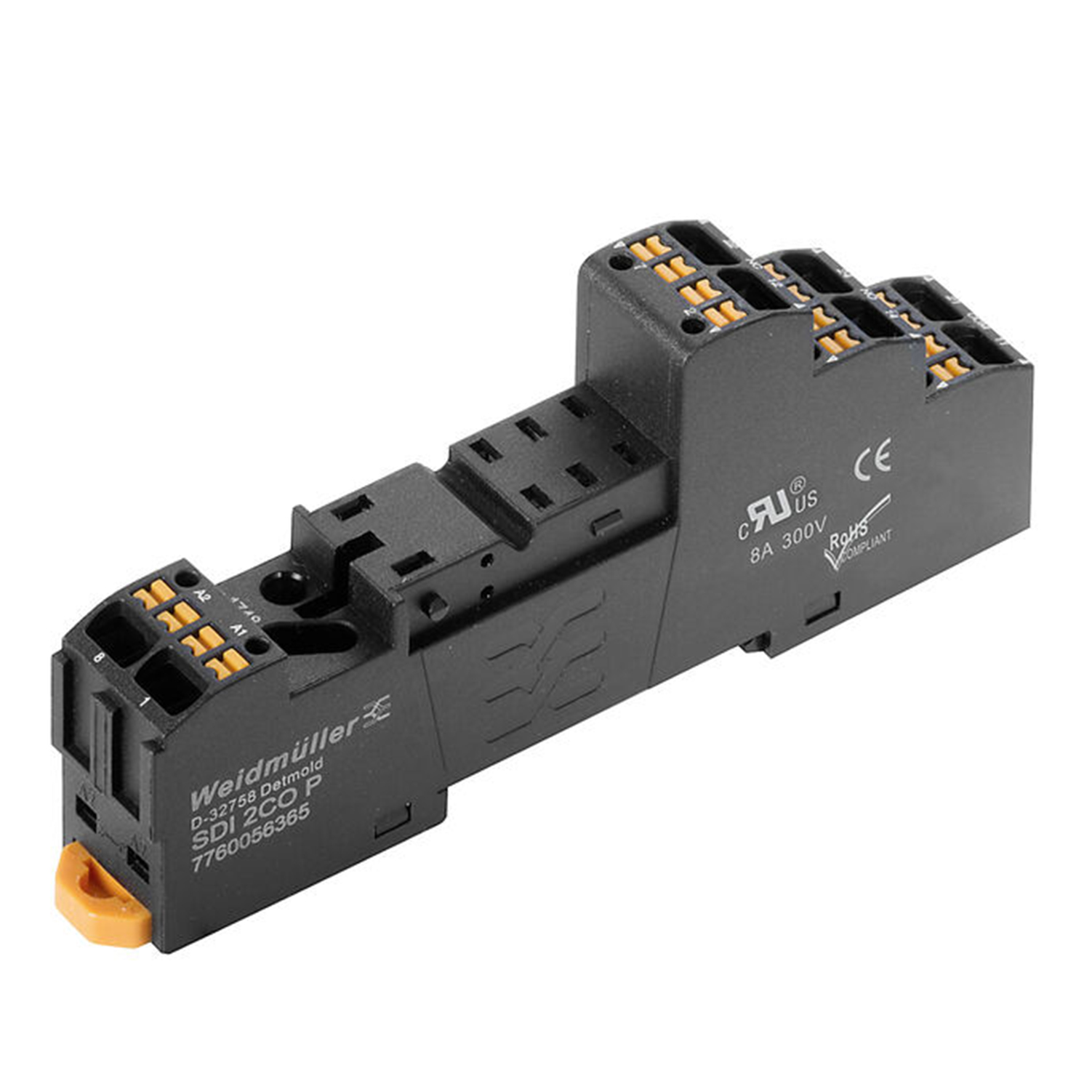

| Version | D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, PUSH IN |
| Order No. | 7760056365 |
| Type | SDI 2CO P |
| GTIN (EAN) | 6944169772290 |
| Qty. |
|

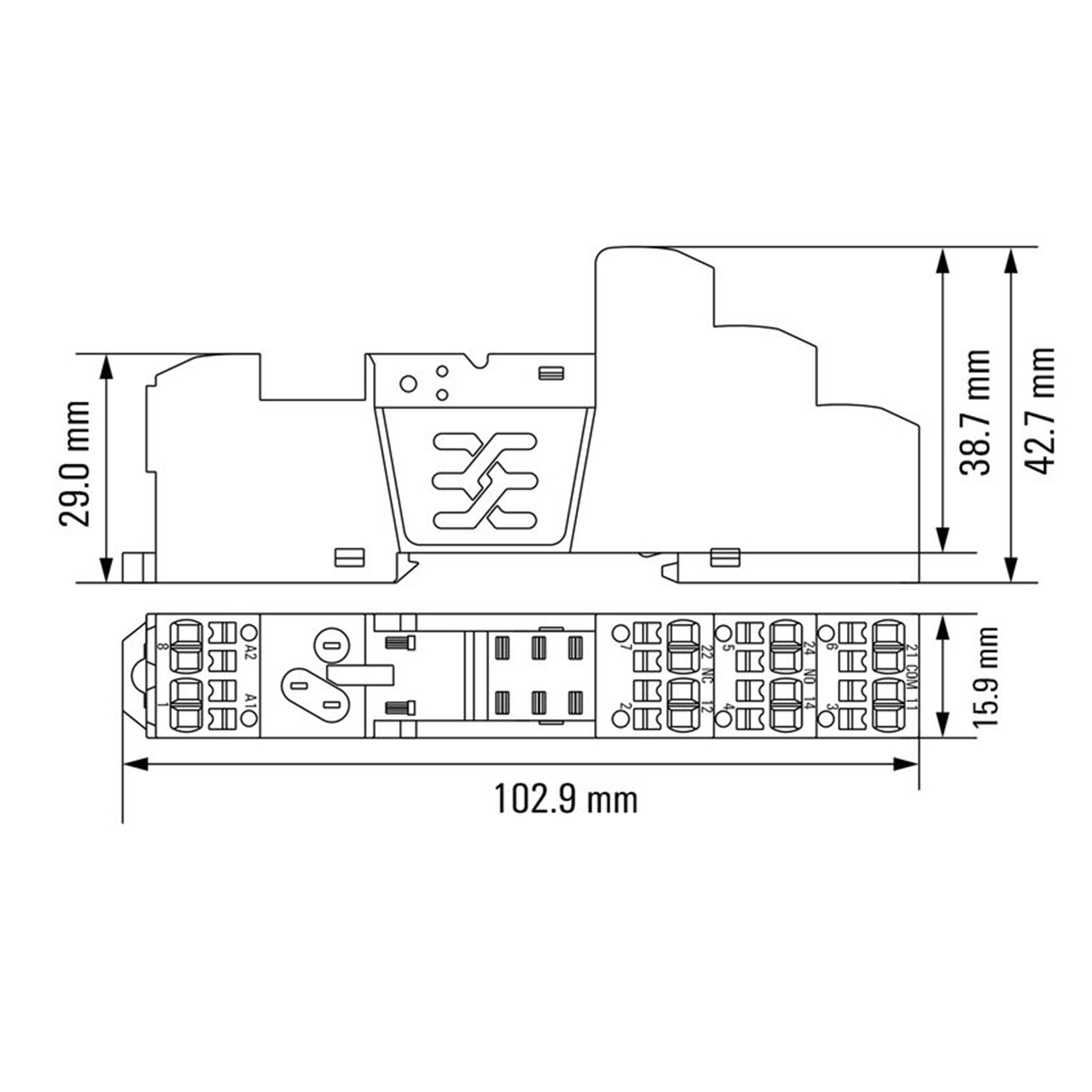

Dimensions and weights
| Depth | 42.7 mm |
| Depth (inches) | 1.681 inch |
| Height |
|
| Height (inches) | 4.02 inch |
| Width | 15.9 mm |
| Width (inches) | 0.626 inch |
| Net weight | 38.72 g |
Temperatures
| Storage temperature | -40 °C…85 °C |
| Ambient temperature | -40 °C…55 °C |
| Humidity | 5…85 %, no condensation |
