Product details
Approvals
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (cURus) | E255651 |
| Certificate no. (cULus) | E258476 |
General ordering data
| Version | Power supply, switch-mode power supply unit, 24 V |
| Order No. | 3025590000 |

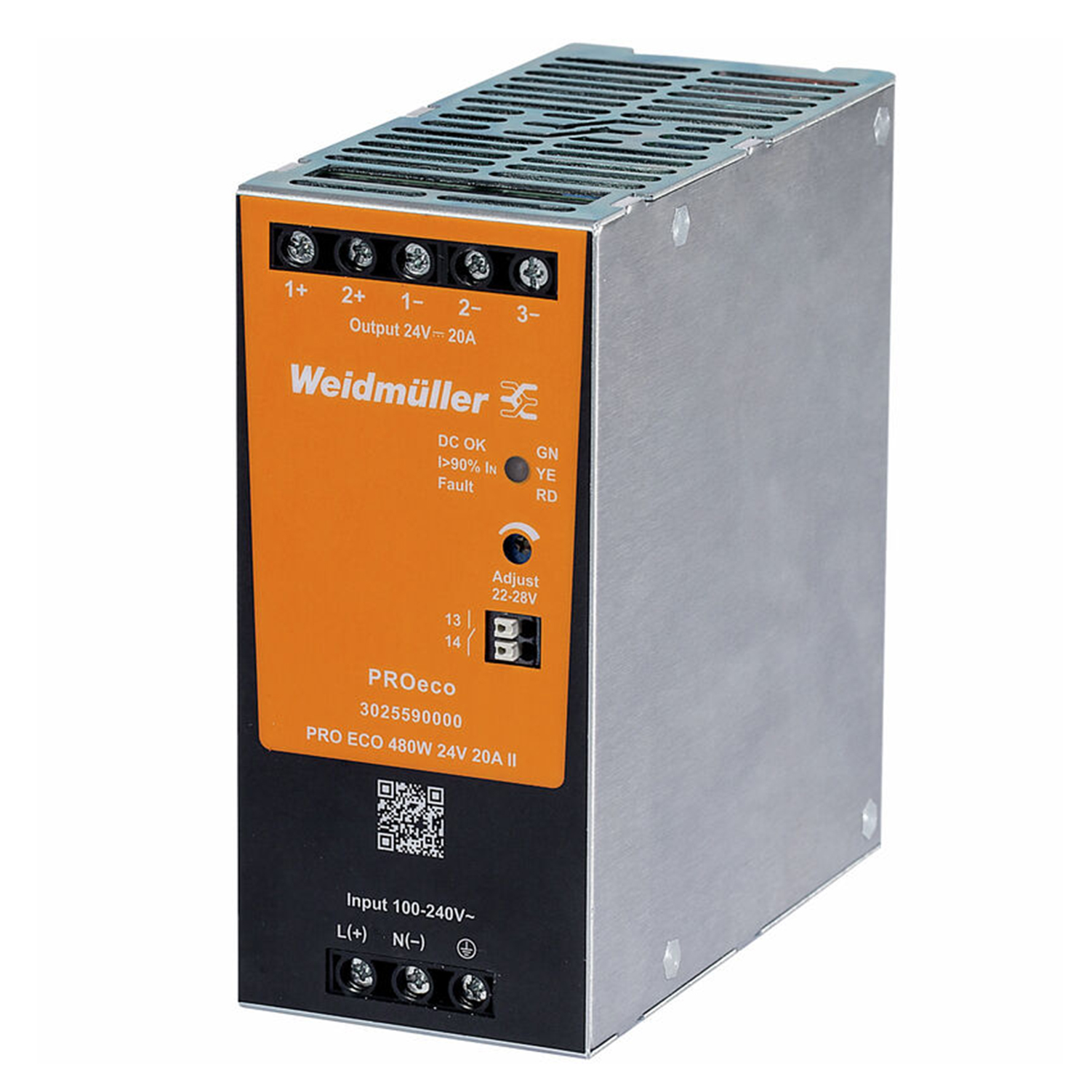

| Type | PRO ECO 480W 24V 20A II |
| GTIN (EAN) | 4099986951976 |
| Qty. | 1 items |
Dimensions and weights
| Depth | 125 mm |
| Depth (inches) | 4.921 inch |
| Height | 130 mm |
| Height (inches) | 5.118 inch |
| Width | 59 mm |
| Width (inches) | 2.323 inch |
| Net weight | 1,230 g |
Temperatures
| Storage temperature | -40 °C…85 °C |
| Operating temperature | -25 °C…70 °C |
| Start-up | ≥ -40 °C |
| Humidity | 5…95 % rel. humidity, no condensation |
