Product details
Approvals
| Approvals |
|
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate no. (cULus) | E312083 |
General ordering data

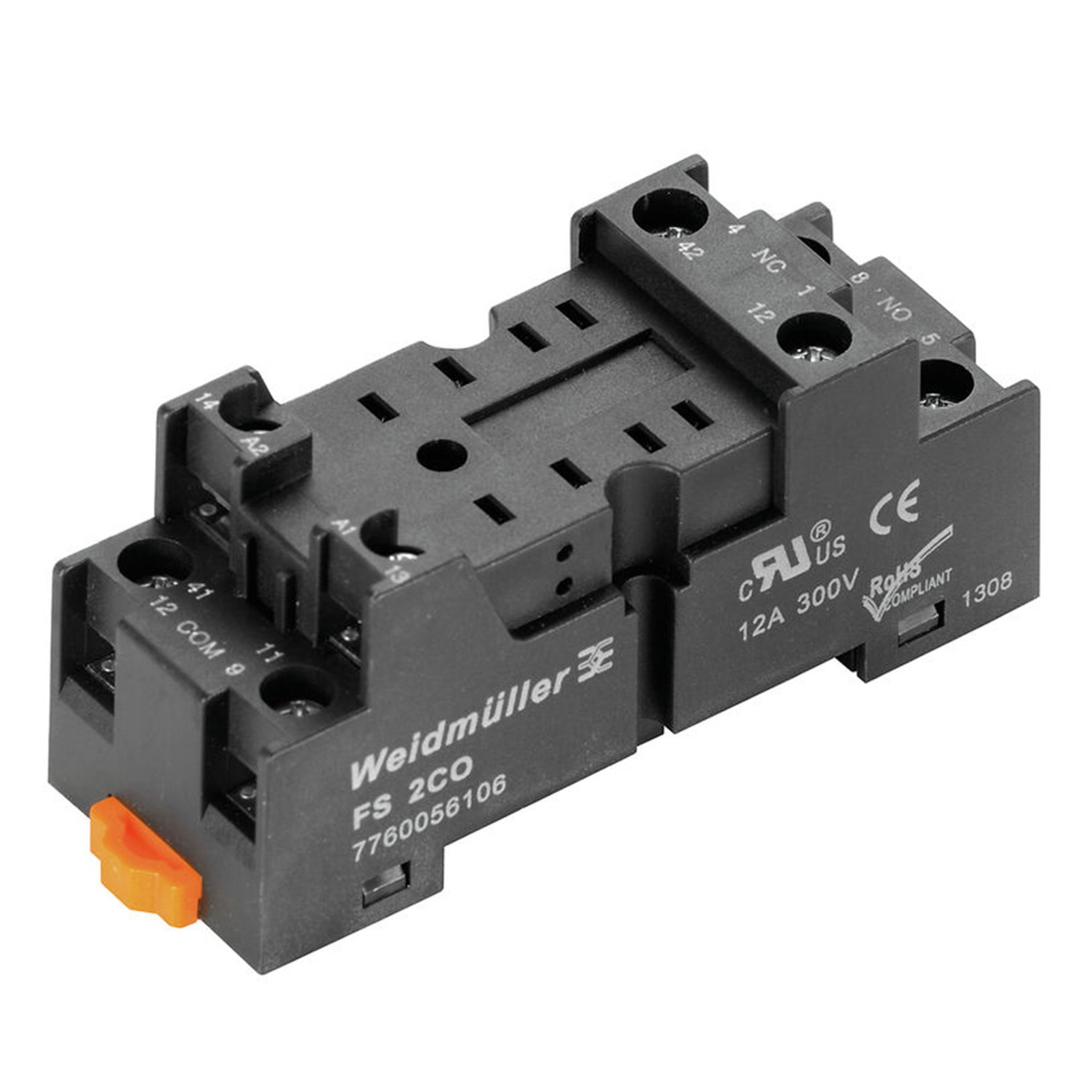

| Version | D-SERIES DRM, Relay socket, Number of contacts: 2, CO contact, Continuous current: 12 A, Screw connection |
| Order No. | 7760056106 |
| Type | FS 2CO |
| GTIN (EAN) | 4032248855582 |
| Qty. |
|

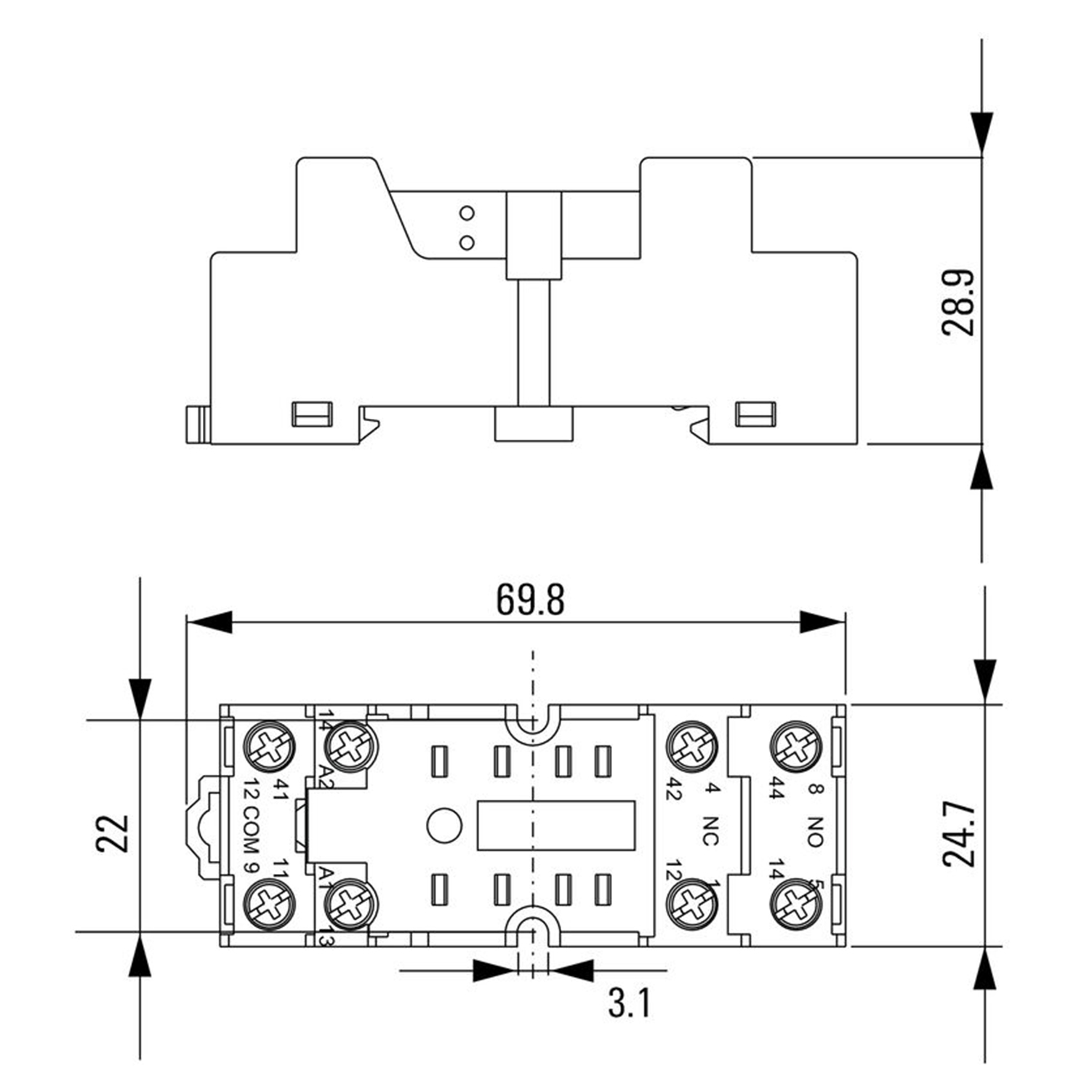

Dimensions and weights
| Depth | 28.9 mm |
| Depth (inches) | 1.138 inch |
| Height |
|
| Height (inches) | 2.748 inch |
| Width | 24.7 mm |
| Width (inches) | 0.972 inch |
| Net weight | 33.5 g |
Temperatures
| Storage temperature | -40 °C…70 °C |
| Ambient temperature | -40 °C…70 °C |
