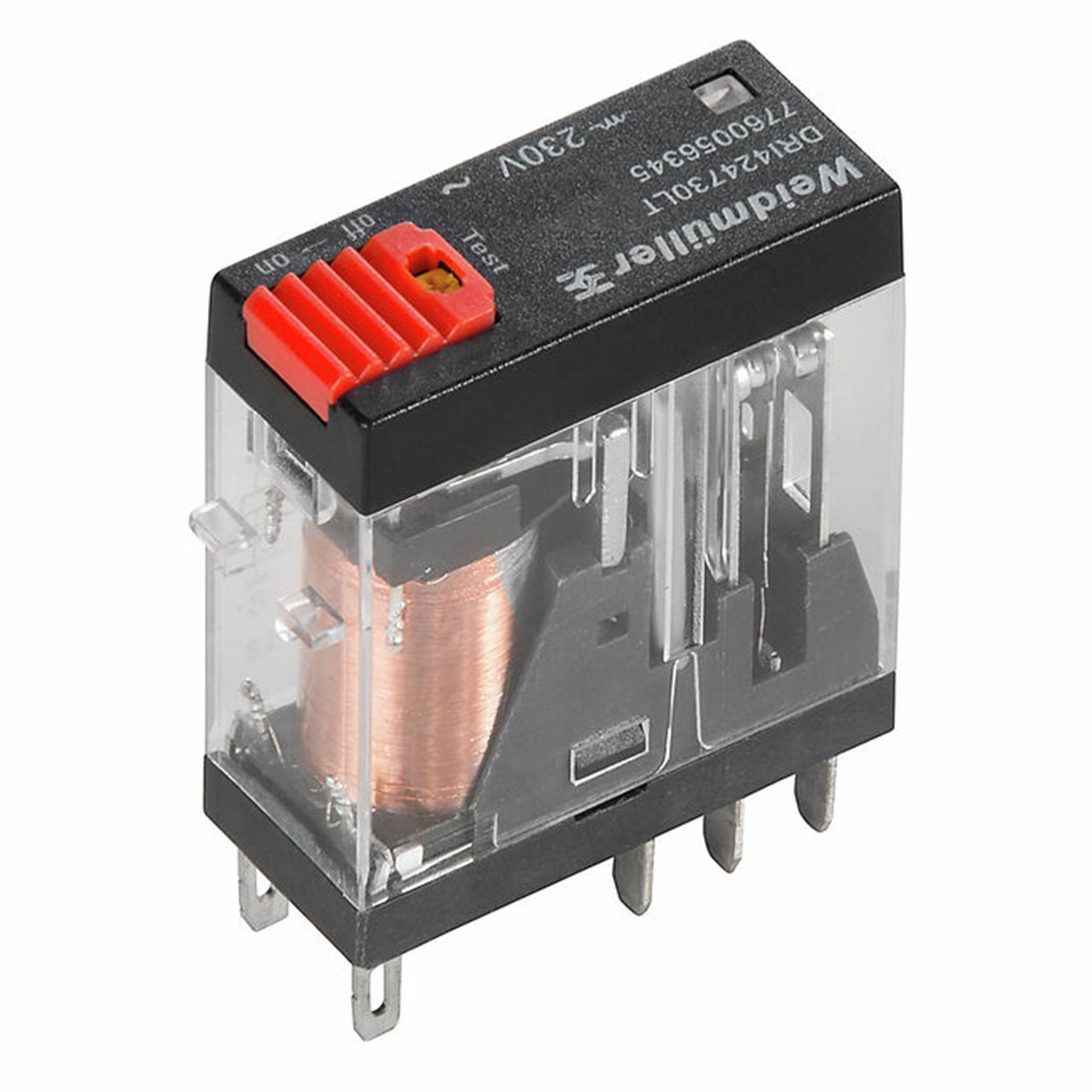

DRI424730LT

In stock

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 230 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Item No.7760056345

Product details

Approvals

Approvals
ROHS	Conform
UL File Number Search	UL Website
Certificate no. (cULus)	E312083

General ordering data

Version	D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 230 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes
Order No.	7760056345
Type	DRI424730LT
GTIN (EAN)	6944169739927
Qty.	20 items

Dimensions and weights

Depth	33.5 mm
Depth (inches)	1.319 inch
Height	31 mm
Height (inches)	1.22 inch
Width	13 mm
Width (inches)	0.512 inch
Net weight	21.1 g

Temperatures

Storage temperature	-40 °C…85 °C
Ambient temperature	-40 °C…55 °C
Humidity	35…85 % rel. humidity, no condensation

DRI424730LT
