Product details
Approvals
| Approvals |
|
| ROHS | Conform |
| UL File Number Search | UL Website |
| Certificate No. (cURus) | E60693 |
General ordering data

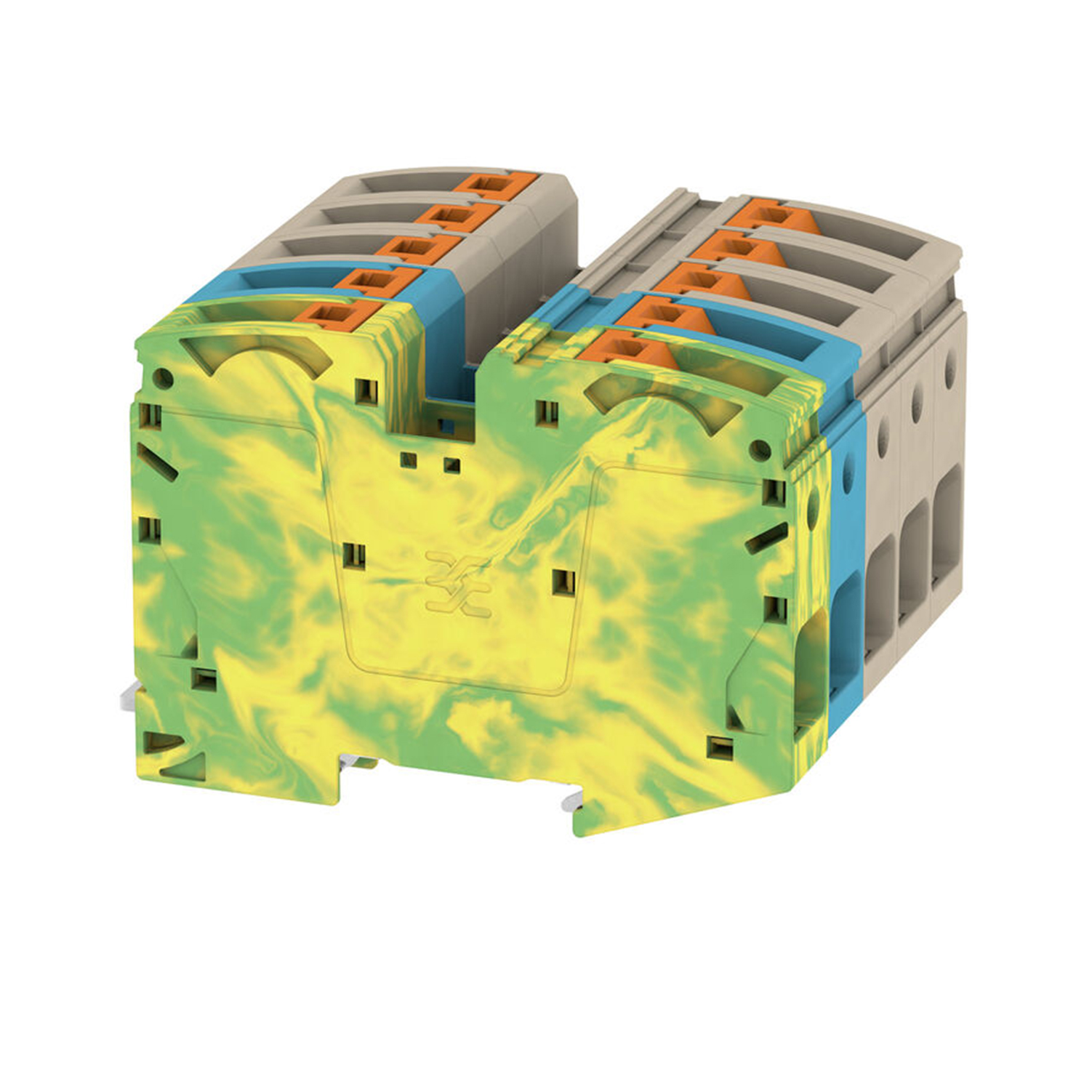

| Version | Feed-through terminal, PUSH IN, 35 mm², 1000 V, 125 A, dark beige |
| Order No. | 2551540000 |
| Type | A2C 35 3FT-N-PE |
| GTIN (EAN) | 4050118695977 |
| Qty. |
|
Dimensions and weights
| Depth | 71.5 mm |
| Depth (inches) | 2.815 inch |
| Height |
|
| Height (inches) | 3.996 inch |
| Width | 80 mm |
| Width (inches) | 3.15 inch |
| Net weight | 428.68 g |
Temperatures
| Storage temperature | -25 °C…55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
